GXH50 Gas-Powered Accessorized Winch

Name: GXH50 Gas-Powered Accessorized Winch
Brand: Portable Winch US
SKU: PCW5000-A
Price: 2369.95 CAD
Availability: InStock

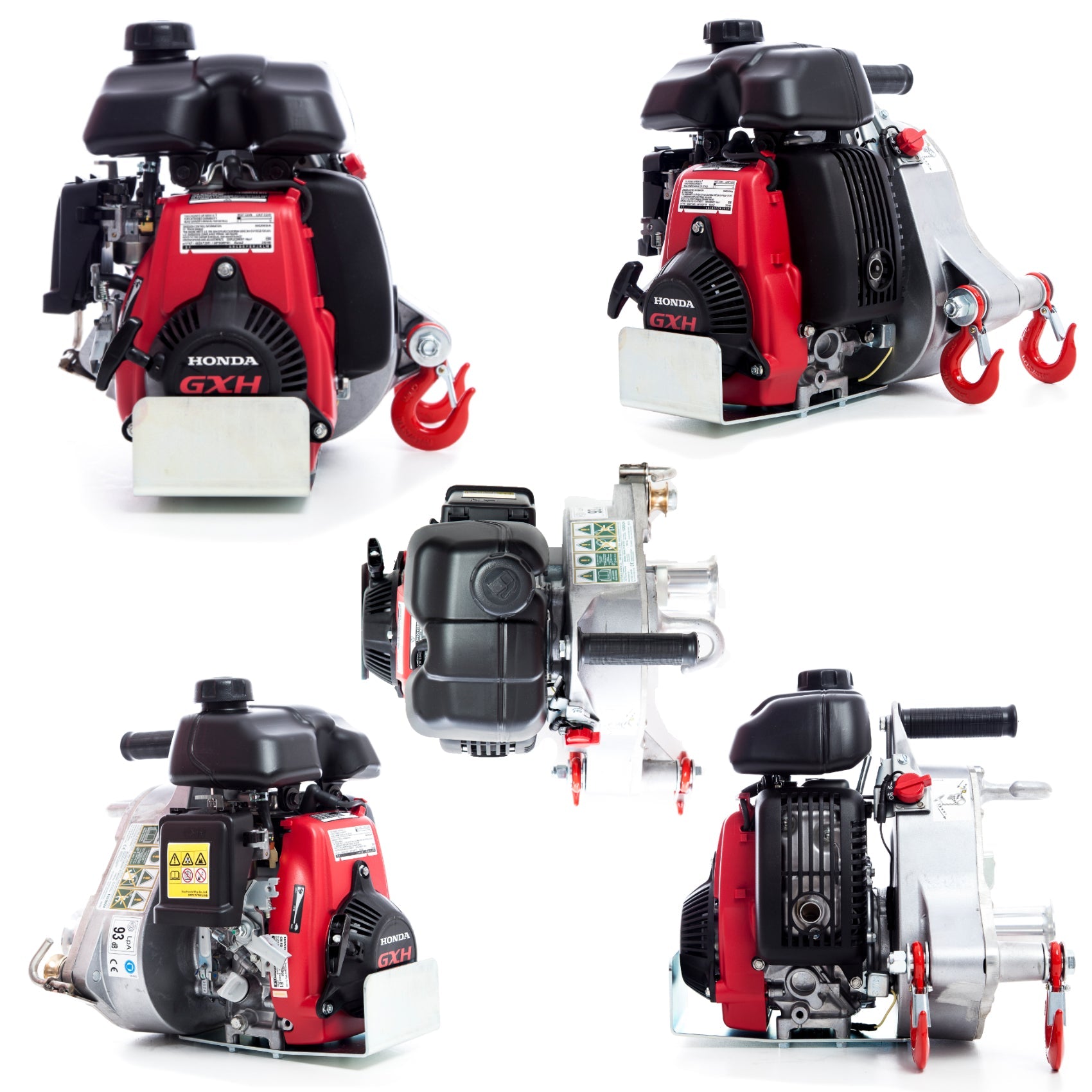

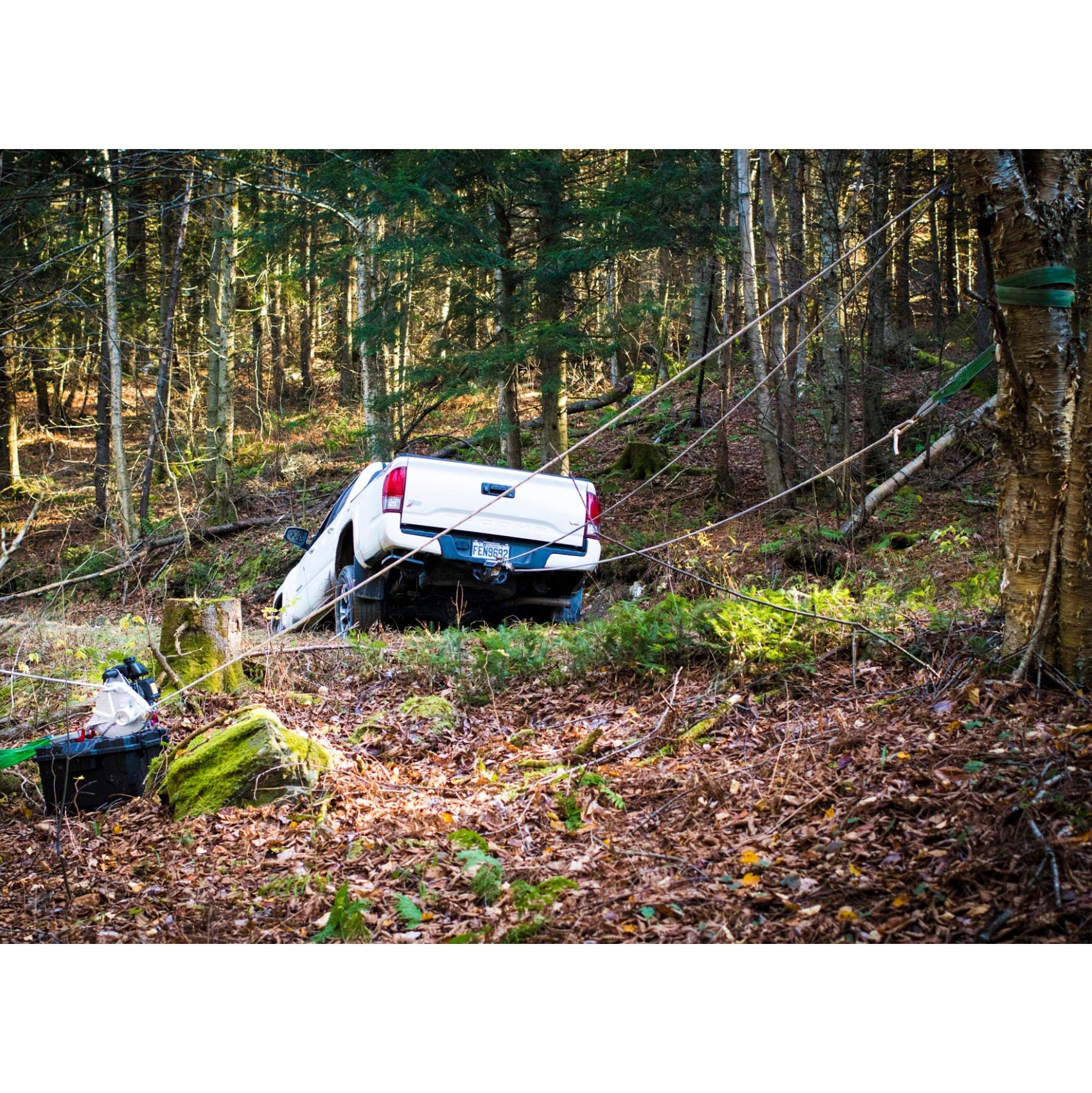

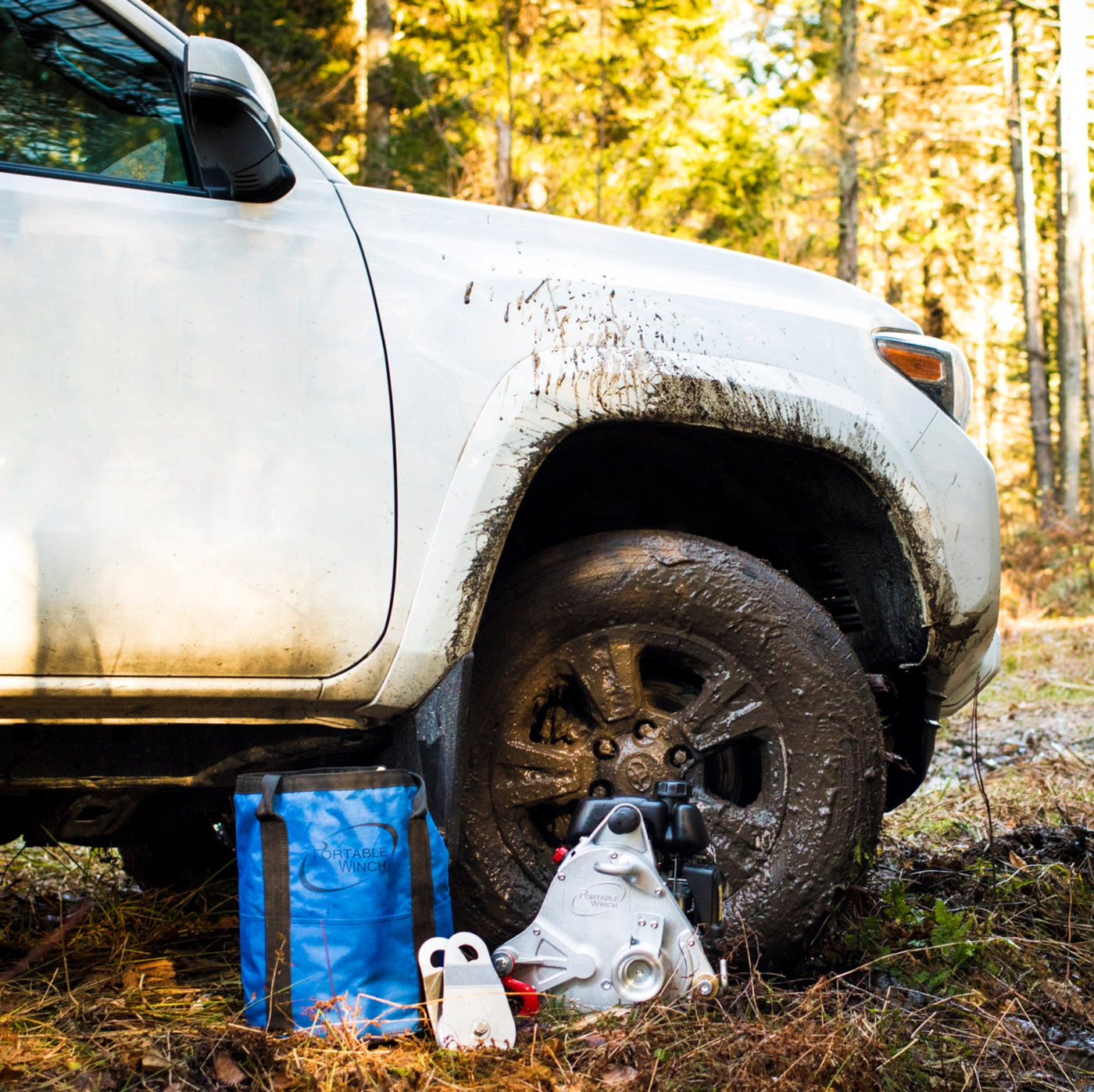

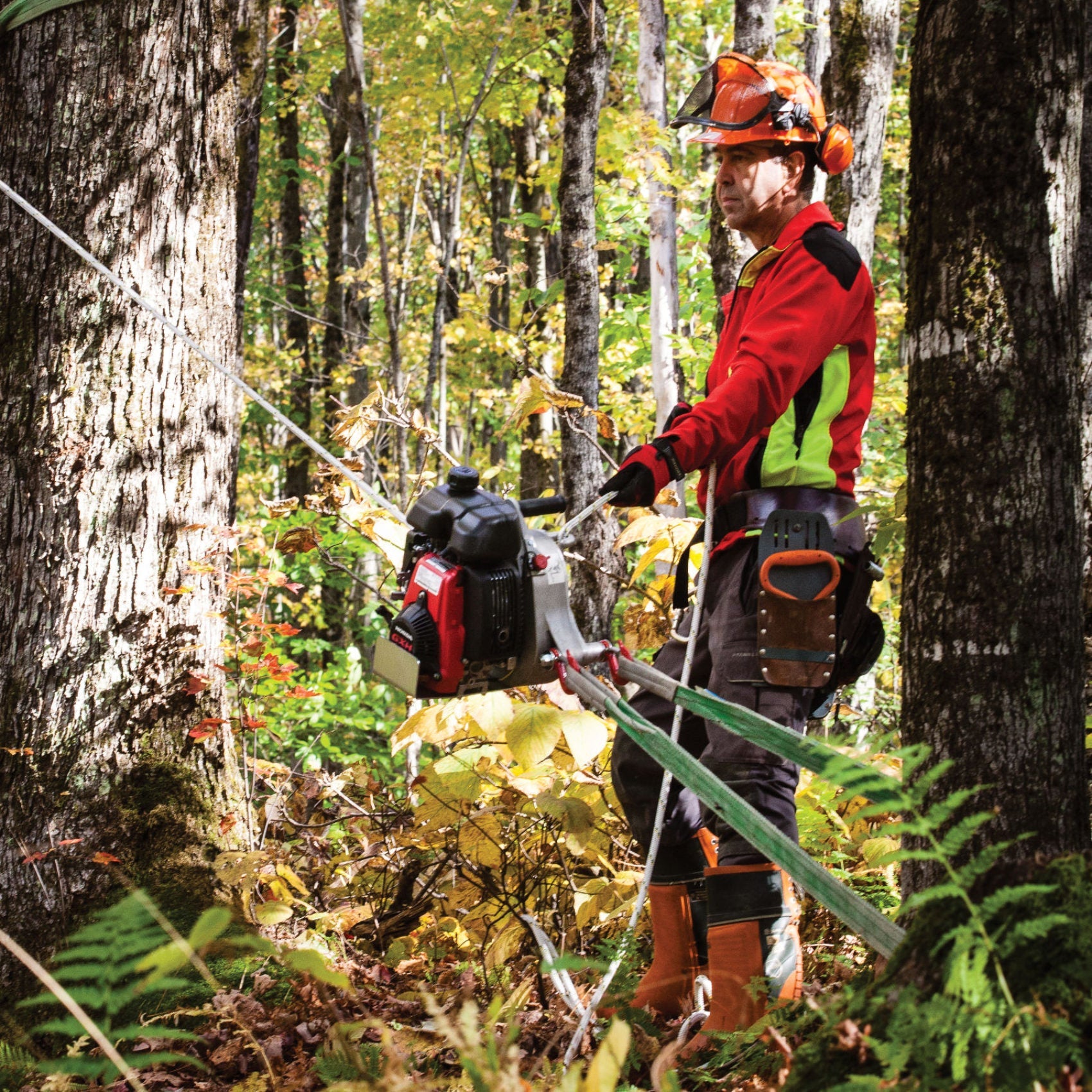

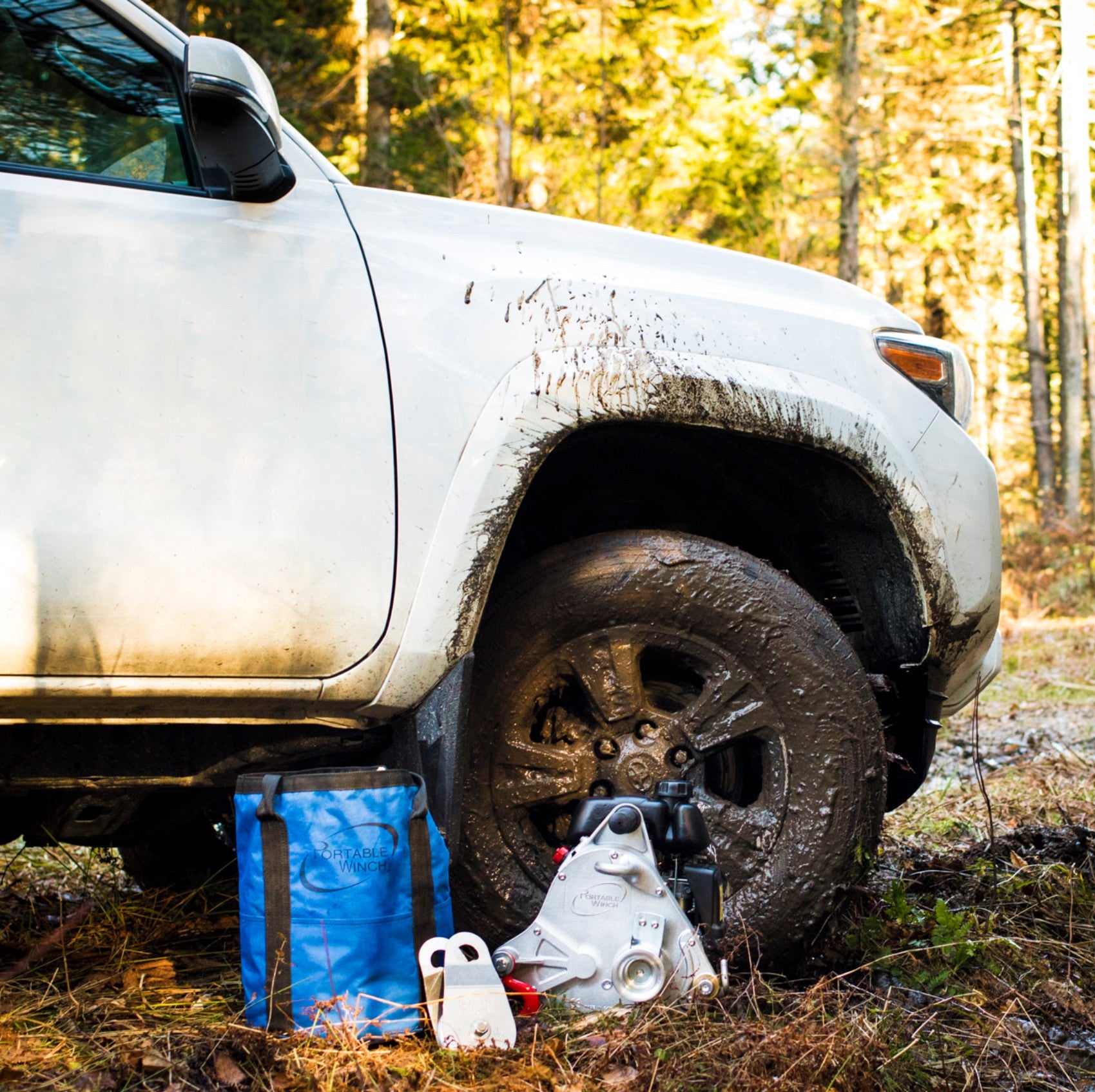

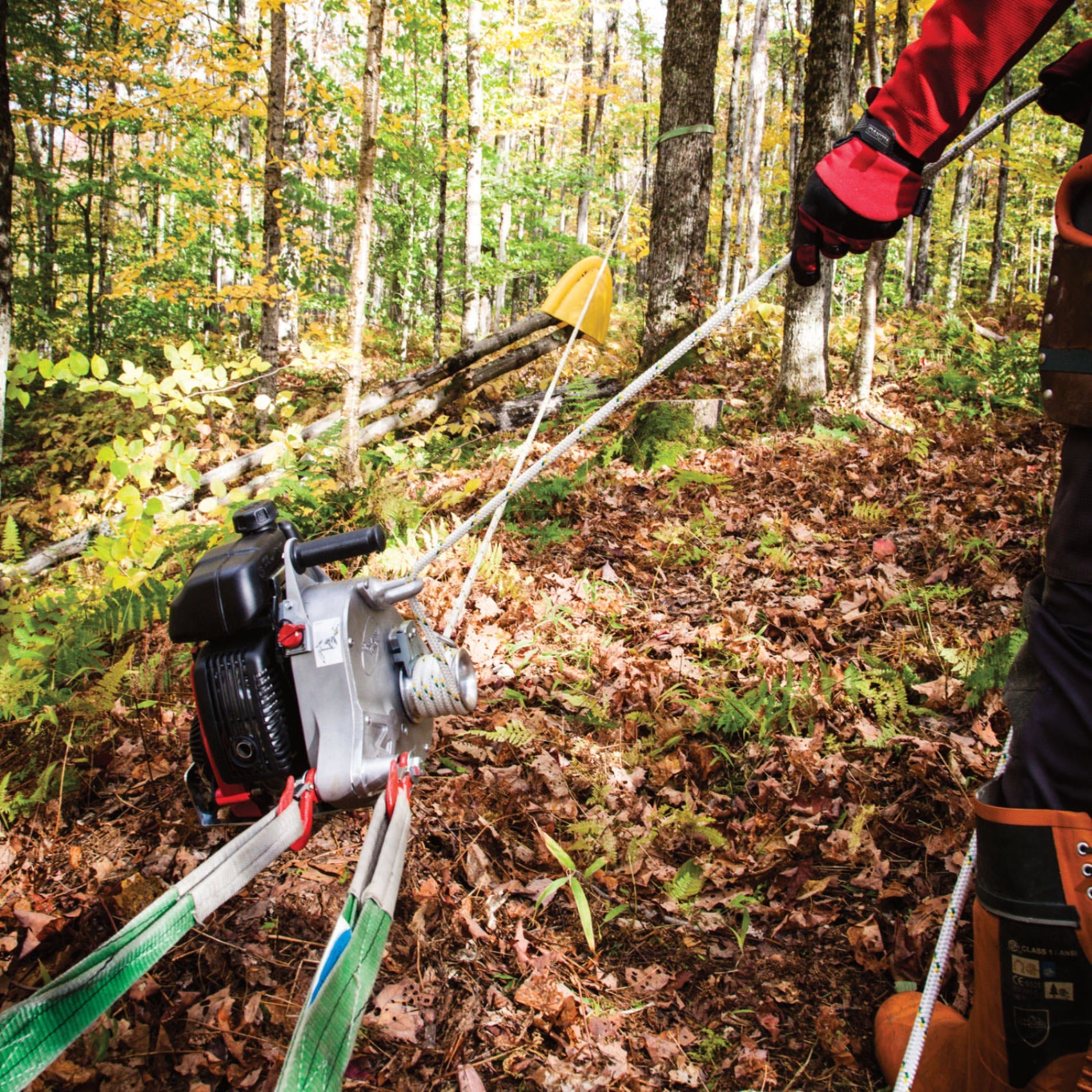

Features the GXH50 engine by Honda, a commercial grade engine that will never let you down. This winch is inexhaustible and will be your ally to do whatever job you have to do; whether it's for pulling trees out of the woods, getting a stuck vehicle out, or any other purpose.

Warranty: 5 years

See details

contact your local dealer

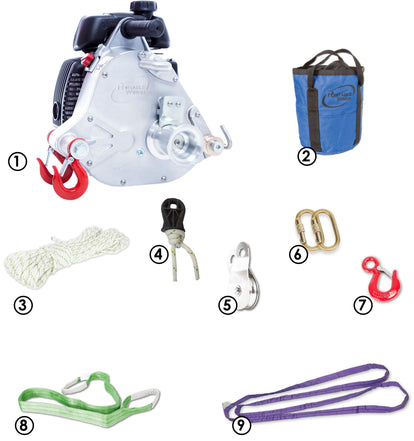

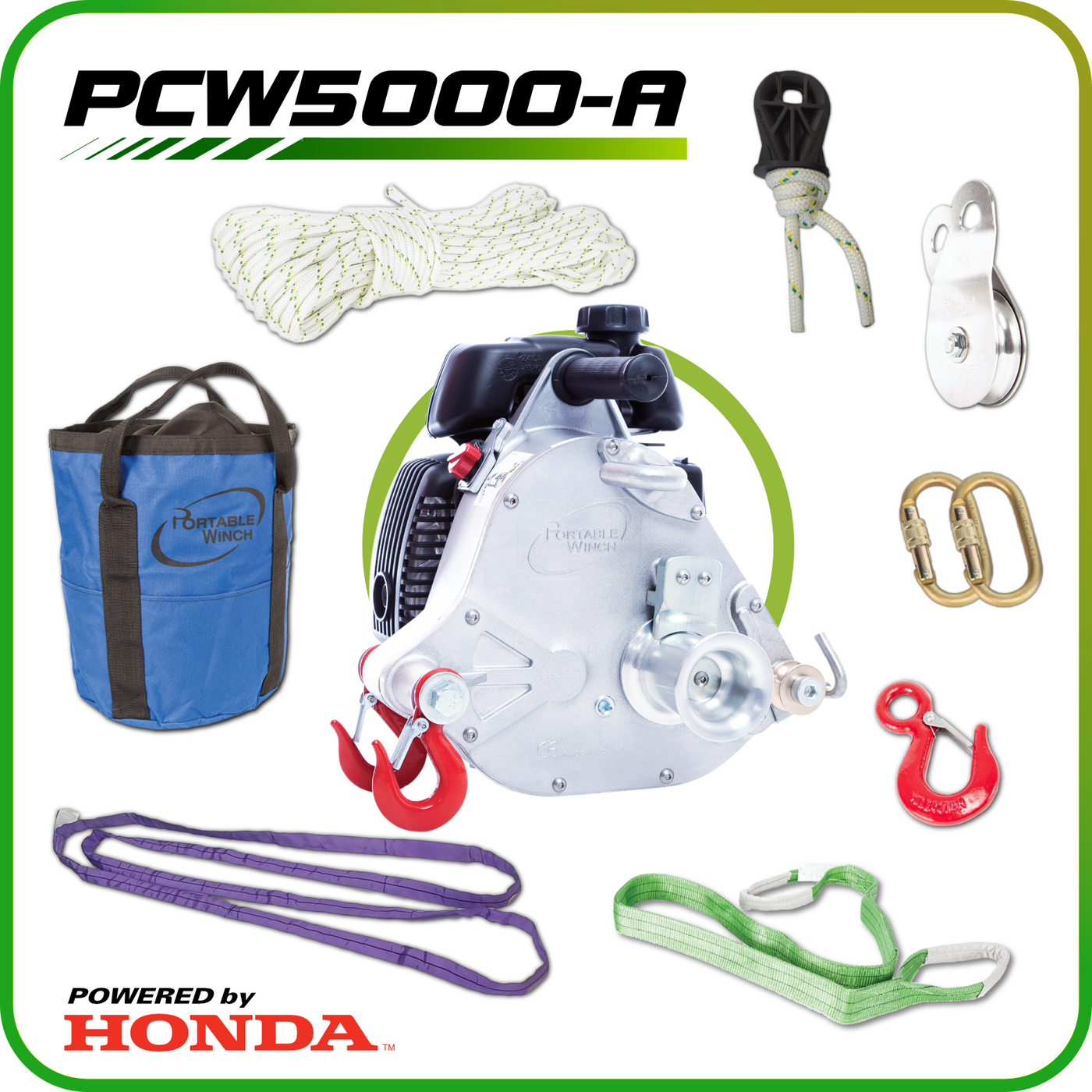

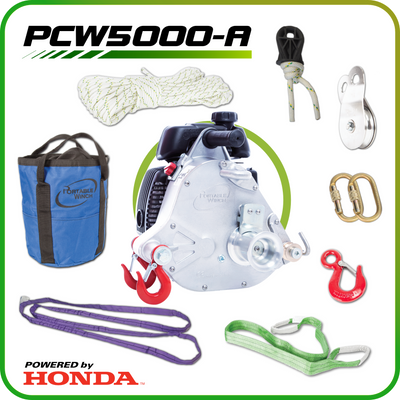

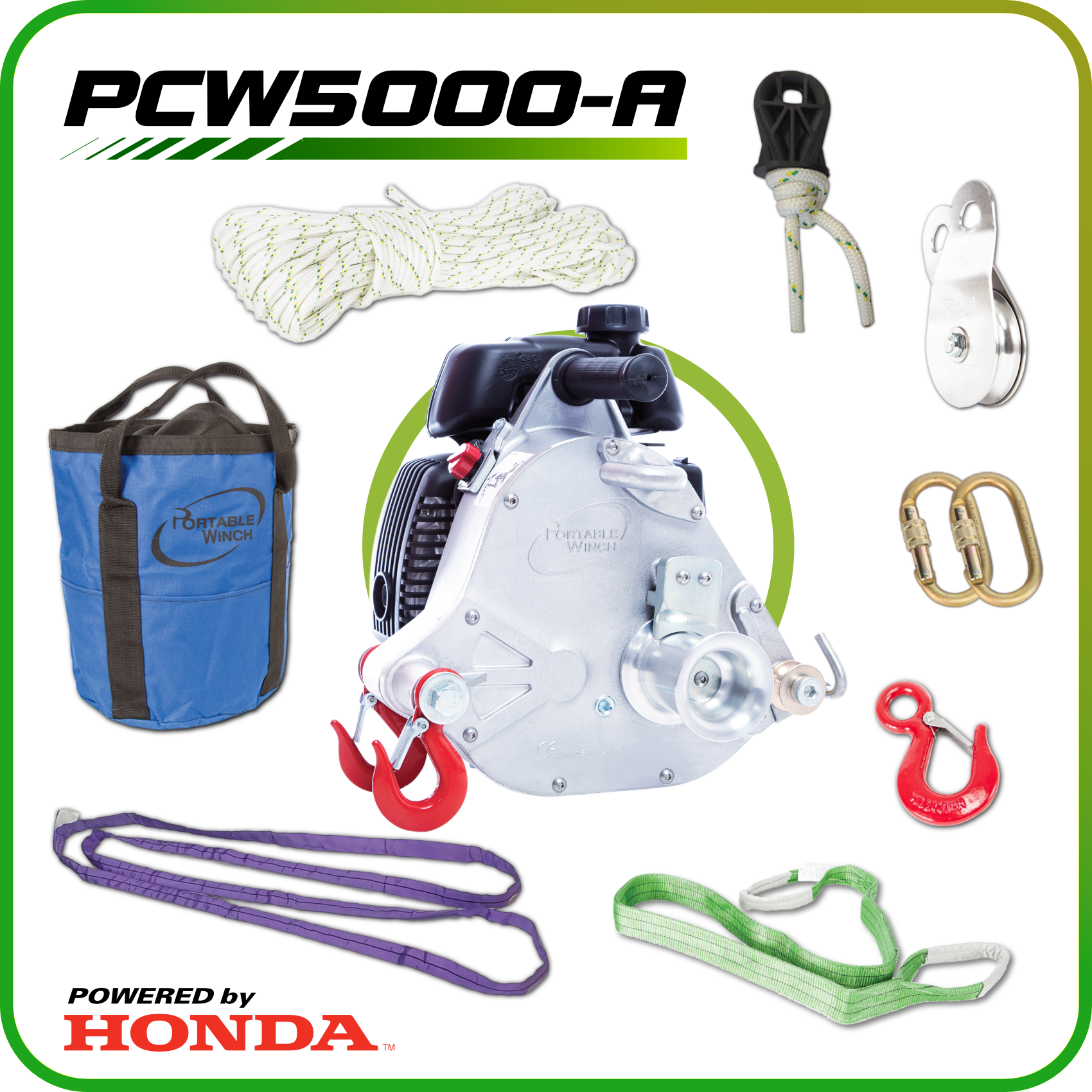

What's in the Box
Product description
Videos
Additional Information

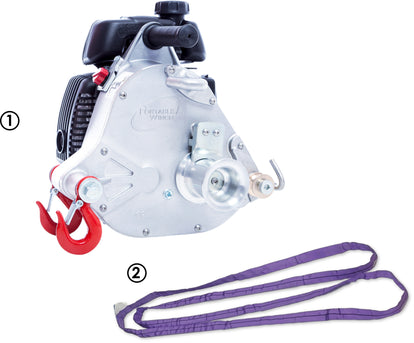

PCW5000
Rope bag to store and carry your rope
50 m (164 ft) rope for smooth pulling operations
RopeWizer^TM - The Easy Splice to retain nearly 100% of the capacity of your rope and easily attach the carabiner
Single pulley to either deviate the pull angle or double the power of the winch
Steel locking carabiners 2x; one to link the pulley to the sling and one for the end of your rope
Safety Hook with Latch to place at the end of the rope to easily attach to the load
2 m (6 ½ ft) Polyester sling to attach the pulley to a tree for example
2.5 m (8 ¼ ft) round polyester sling to anchor the winch wherever you need it!

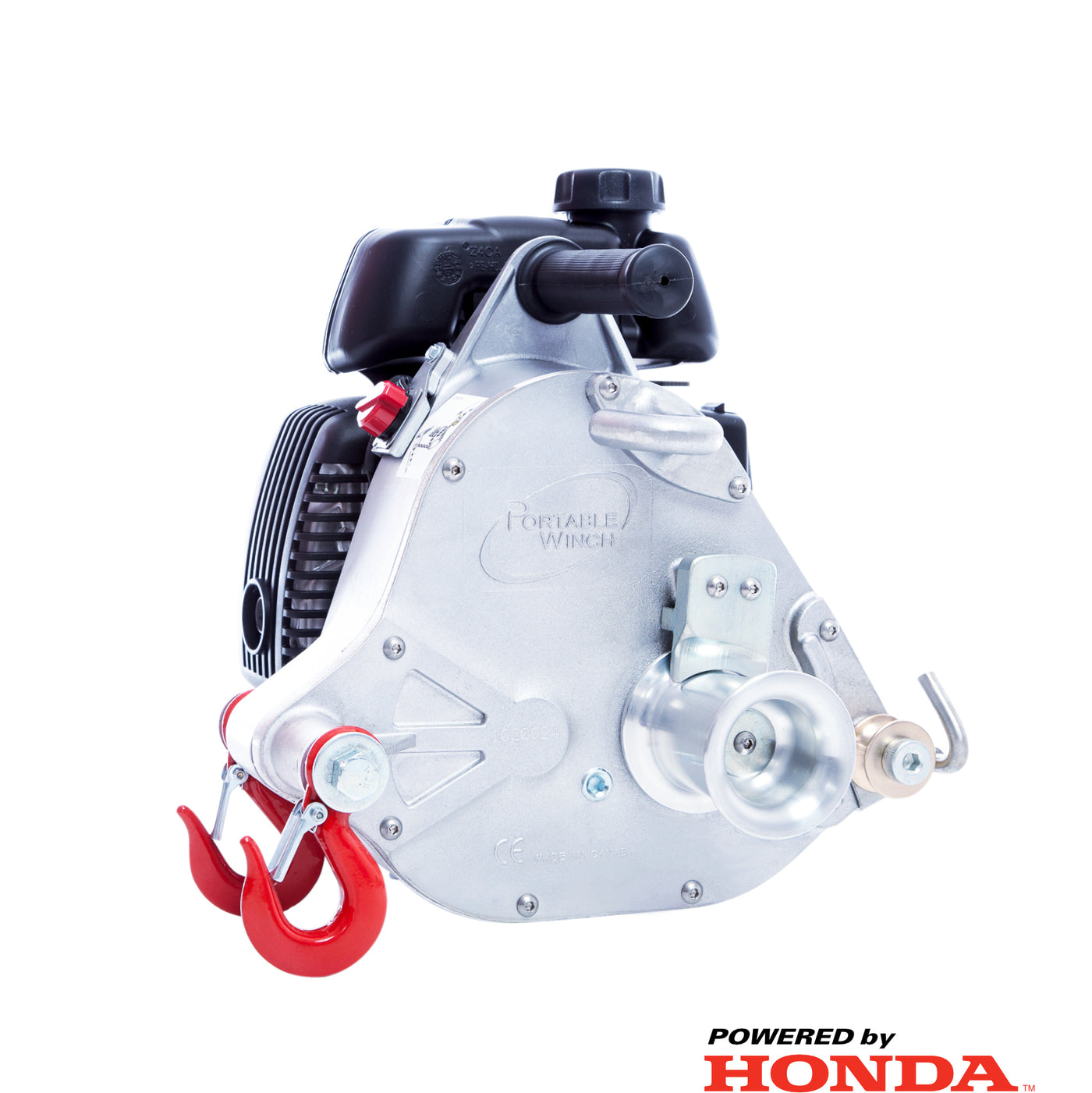

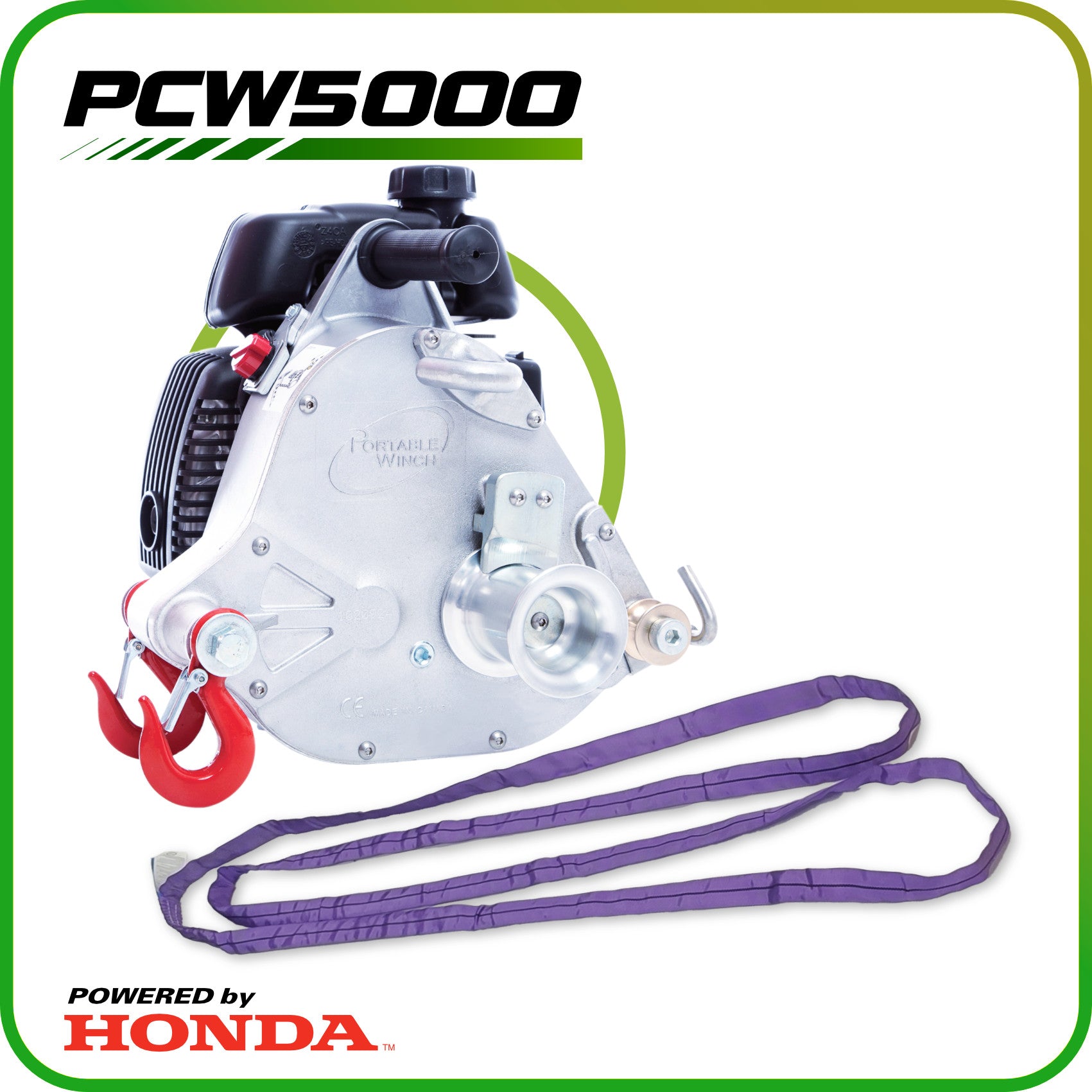

The original winch.

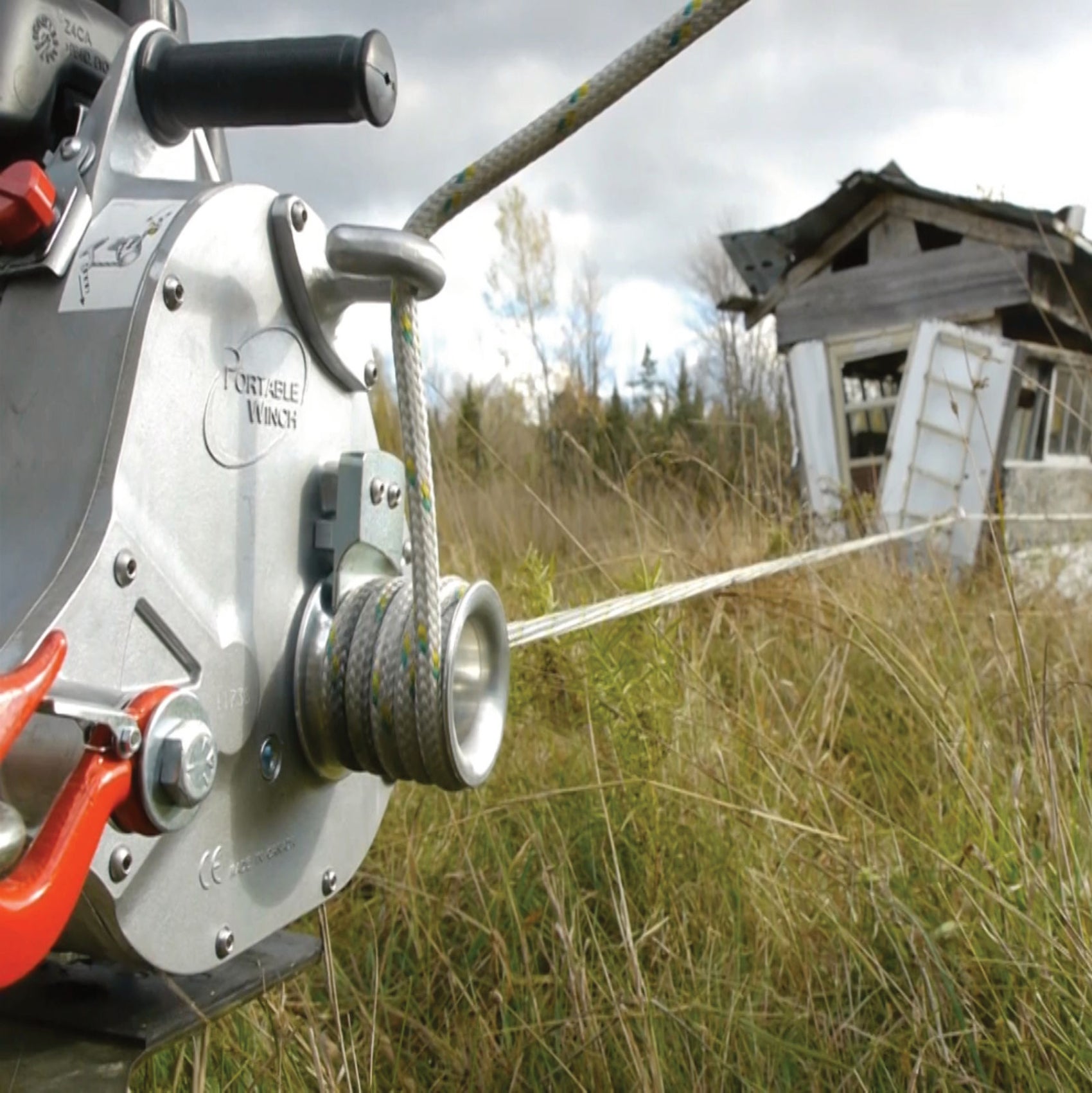

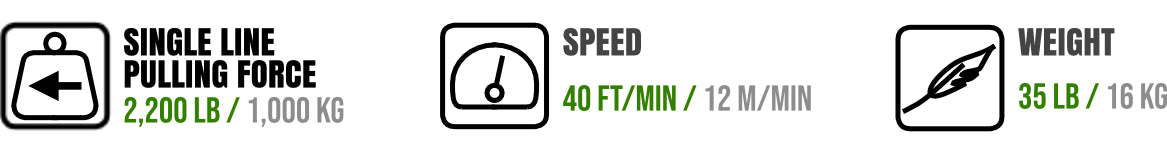

The sturdy design of the PCW5000 still proudly bears the Portable Winch signature quality and durability; an ingenious product, to deliver lasting power, without compromise. Thanks to its industrial-grade GXH50 4-stroke engine, this winch delivers all its power for several hundred hours with a constant pulling speed of 12 m (40 ft) per minute. The capstan winch concept allows to pull loads without loss of power, in a simple, effective, and safe way.
For more speed, a larger drum of 85 mm (3 ⅜ in) is available as an option to reach a 50% faster pulling speed of 18 m (60 ft) per minute.

The PCW5000 develops a remarkable pulling force of 1,000 kg (2,200 lb) over an unlimited length of rope. Use a block and tackle to get up to five times (5x) the pulling force. This means, with two double pulleys, you could pull up to 5,000 kg (11,000 lb)!

Unleaded gasoline, 86 octane or higher
Direct drive (no clutch)
Standard drum size: 57 mm (2-1/4 in)
Optional drum size: 85 mm (3-3/8 in)

* View the "Additional Information" tab for even more specific details and helpful links.

Technical Data Sheet
Spare Parts
User Guide
How to Double the power, with block-and-tackle

2. Complement with the adapted solution

The Forestry Solution

PCA-FS

$374.95 CAD

The Hunting & Off-Roading Solution

PCA-HOS

$244.95 CAD

3. Complete your selection

Molded Transport Case for PCW5000 and PCW5000-HS

PCA-0100

$349.00 CAD

Ø 12 mm Double-Braided Polyester Ropes

PCA-1215M

from $179.00 CAD

Satisfait

Je me sert de mon portable winch pour retirer tout le bois qui est tombé lors de la tornade de mai dernier dans Les Laurentides et je suis plus que satisfait, je vais m’en servir à la chasse l’automne. Bref je ne pourrais m’en passer, bien bâti, fiable et très utiles 👍

Initial impression of PCW5000 winh

Have used the winch on two occasions inn past week. Both times for about 2 hours each.
1/ Engine worked well with no initial hick-ups.
2/no problems setting up.
3/ There is definitely a learning curve.
a/ coiling the rope
b/far easier to use the chain hooked to the rope
c/ single rope versus doubled over
d/ finding way to wrap two or three logs together
4/definitely has far more pulling power when doubled over.
5/ does tear up the ground a bit, but far less than a tractor would, even today with wet ground
6/So far, have been quite happy with winch. Will no doubt find more ways to improve my efficiency with use.
7/ BTW: the videos gave me a lot of info
8/One thing I did was lay out the cable and used a bit of spray paint every 15
meters to know how far I was extended out.
9/ rope isn’t as white any more.
Thanks

Works exactly as promised

Honda engine starts easily. Great in Maritime woodlands. Like the name says, very portable.

Saving the world one tug at a time

Great winch! This isn't in the same class as the old chainsaw winches. Used these in remote ship wreck salvage work. Tree bracket was amazing. Also works great with the log bullet head for skidding out your timber harvest. Quick shipping and awsome customer service.

Saving the world one tug at a time
