APW6000 - 1500 kg battery-powered winch
- ✓ Powerful & Quiet
- ✓ Professional-Grade Performance
- ✓ Maintenance-Free
- ✓ Safe for Operator
- ✓ STIHL AP Battery Compatible
THE APW6000 NOW AVAILABLE
IN STORES ONLY
The next evolution in winching is finally here! Born from a groundbreaking collaboration between Portable Winch Co. and STIHL, the APW6000 redefines what power and reliability mean in the field. Engineered for those who refuse to compromise, it stands as the ultimate expression of professional-grade winching.
Although it is not available online yet, the winch is available at your local dealer. Click below to find the one the closest to you and get your APW6000 with no further delay.
Forestry, Off-Roading, Pruning & More Applications
The most powerful battery winch on the market
-
0 KGPULLING FORCE
-
0 HPHORSEPOWER
-
0 m/minMAXIMUM SPEED
-
0 KGWEIGHT(without battery)
PORTABLE - PROFESSIONAL - POWERFUL
The APW6000 represents the pinnacle of professional-grade winching, purpose-built for those who demand unwavering reliability in the most challenging conditions. It combines rugged performance with the portability required by professionals such as arborists and field operators.
FOR PROFESSIONALS
Get the most out of your APW6000 with the trusted STIHL AP battery. Built for professionals who demand endurance and reliability, this high-performance battery delivers outstanding power and speed for maximum productivity.
KEY TECHNOLOGIES
- MaxGrip™ Drum
- Precision rope control system
- 3.0 kW instant torque motor
- Emergency stop & drum lock system
ℹ️Battery and charger not included
Origin: CANADA 🍁
PERFORMANCE
Maximum Line Pull Force
(Single / double) 3,300 lb / 6,600 lb - 1,500 kg / 3,000 kg
Line Speed (3-speed mode selector)
33' / 43' / 53'/min - 10 / 13 / 16 m/min depending on battery
Working Conditions
IPX4, -10°C to +45°C / 14°F to 113°F
ENERGY
Powerhead
Integrating STIHL POWER
3.0 kW motor
That converts to 420 Nm after gear reduction
36 V LITHIUM-ION ENERGY
Fits all AP series batteries by STIHL. Reaches 337 wh with the AP 500 S

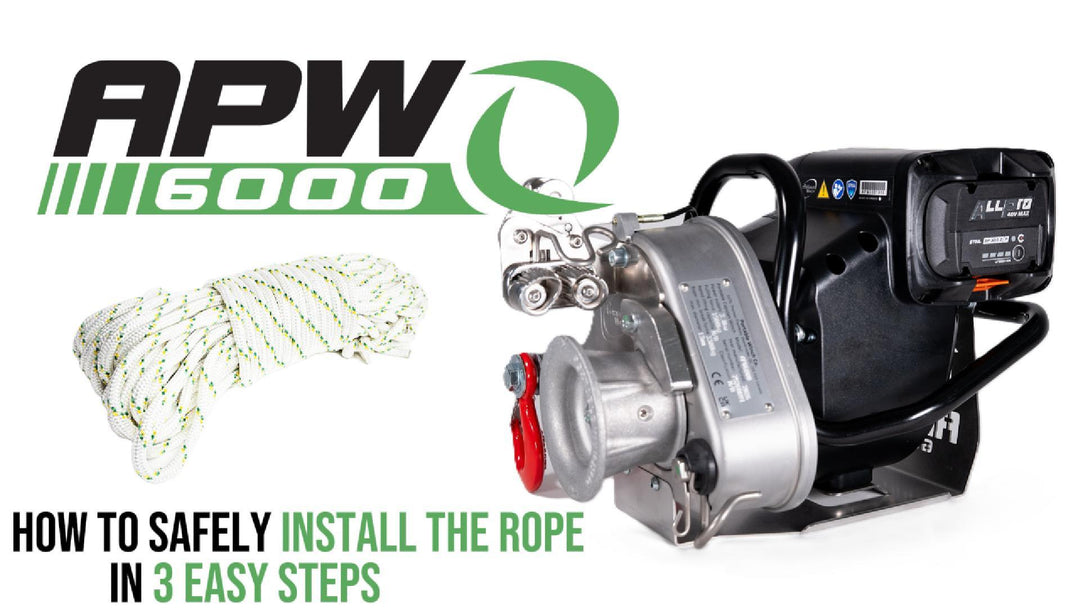

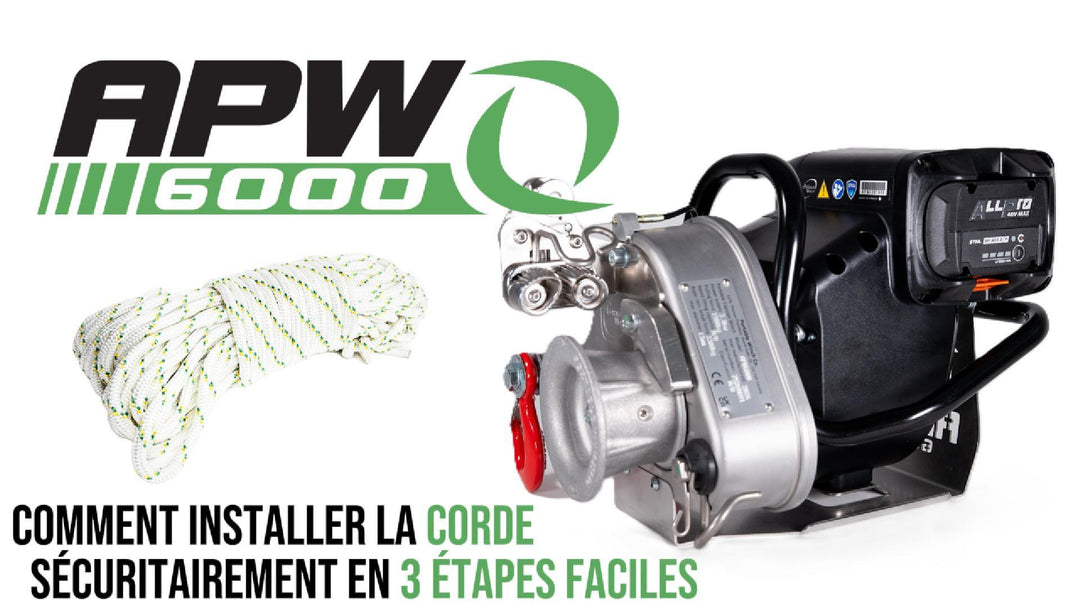

ROPE AND CONTROL SYSTEM
Pull-Activated Throttle
Intuitive, your rope is your controller
INTEGRATED PROGRESS CAPTURE SYSTEM
Proprietary stainless-steel support that prevents load rollback and keeps the rope under tension, improving safety and control in demanding applications while remaining easy to disengage.
ENTRY HOOK WITH TENSION ROD
Proprietary system to keep the tension on the rope when it gets slack
MaxGrip™ Drum
Ribbed Ø 3" (76 mm) capstan drum made of aluminum
SAFETY
Emergency Stop
Instantly kills the engine and stop the pull
Low noise
Sound level: LpA = 74 dB(A) at operator
OTHER FEATURES
Gearbox
200:1 high-efficiency gear reduction. Oil-bath lubricated and factory-sealed for long-term, maintenance-free reliability.
Mounting Hooks
Industrial-grade hooks affixed into the molded gearbox
WINCH PROTECTION guard
Housing protection and built-in handle
THE UNIT
Weight
29.3 lb - 13 kg without battery
Dimensions
15-5/8" x 11-1/16" x 10-7/16" - 39.6 cm x 28 cm x 26.5 cm
Year of Launch
2026
INCLUDED
8' (2.5 m) round polyester sling
Rated for 4,400 lb - 2,000 kg (WLL) considering a safety factor of 7
WARRANTY AND CERTIFCATIONS
Warranty
5-Year Limited Warranty (+1 Year with Registration)
Certifications
CE, UKCA, IPX4
Documents
Frequently Asked Questions
Pulling Capacity
The APW6000 delivers up to 1500 kg (3,300 lb) of pulling force, ideal for demanding field operations.
Professional Use
Yes — it is designed for arborists, contractors, utilities, and field operators who need reliable pulling performance.
Replacing a Petrol Winch
In many applications, yes. Its instant start, low maintenance, quiet operation, and portability make it a strong alternative.
Outdoor Use
Absolutely. The APW6000 is IPX4‑rated and built for rugged, real‑world outdoor environments.
