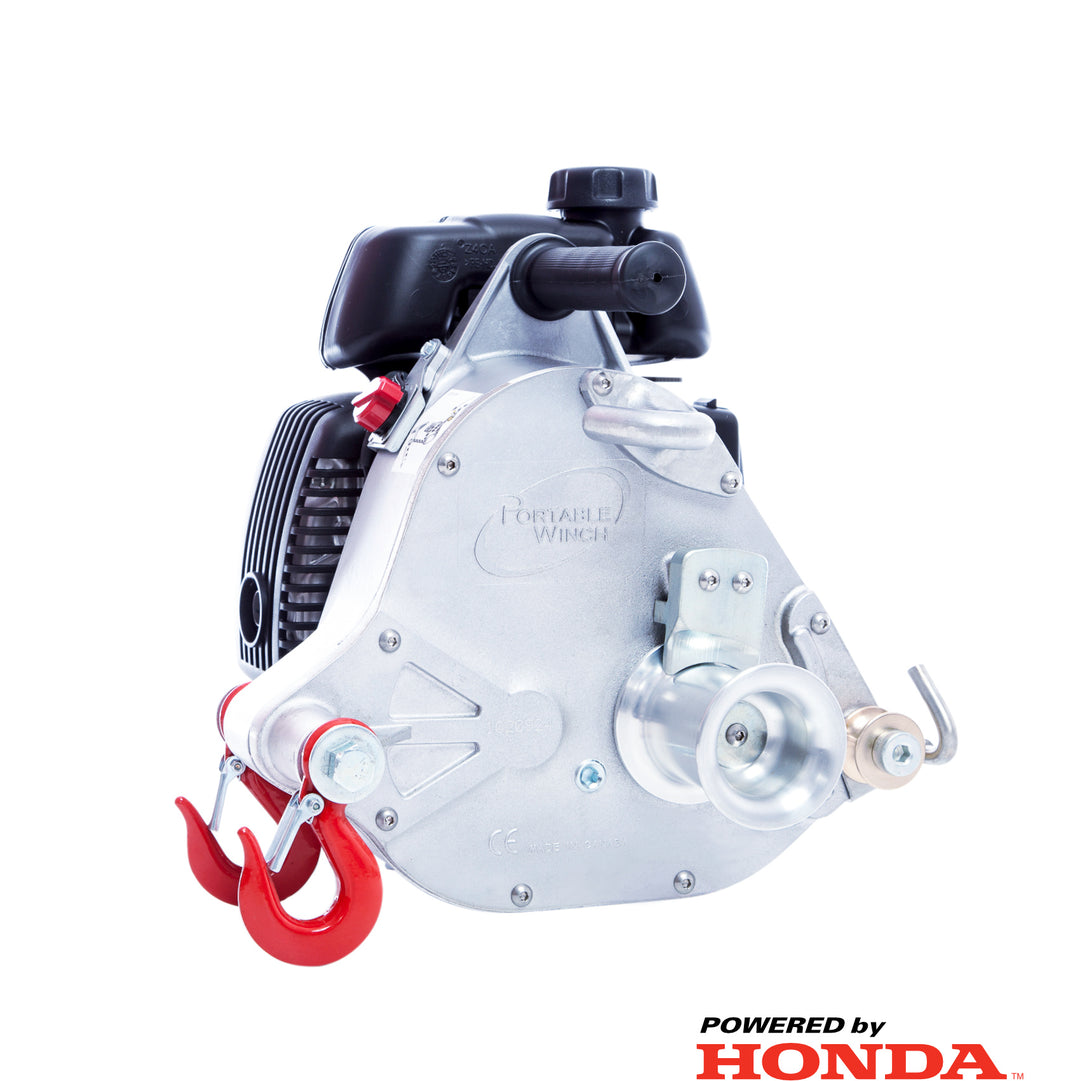

PCW5000
GAS-POWERED
PULLING WINCH
GXH50

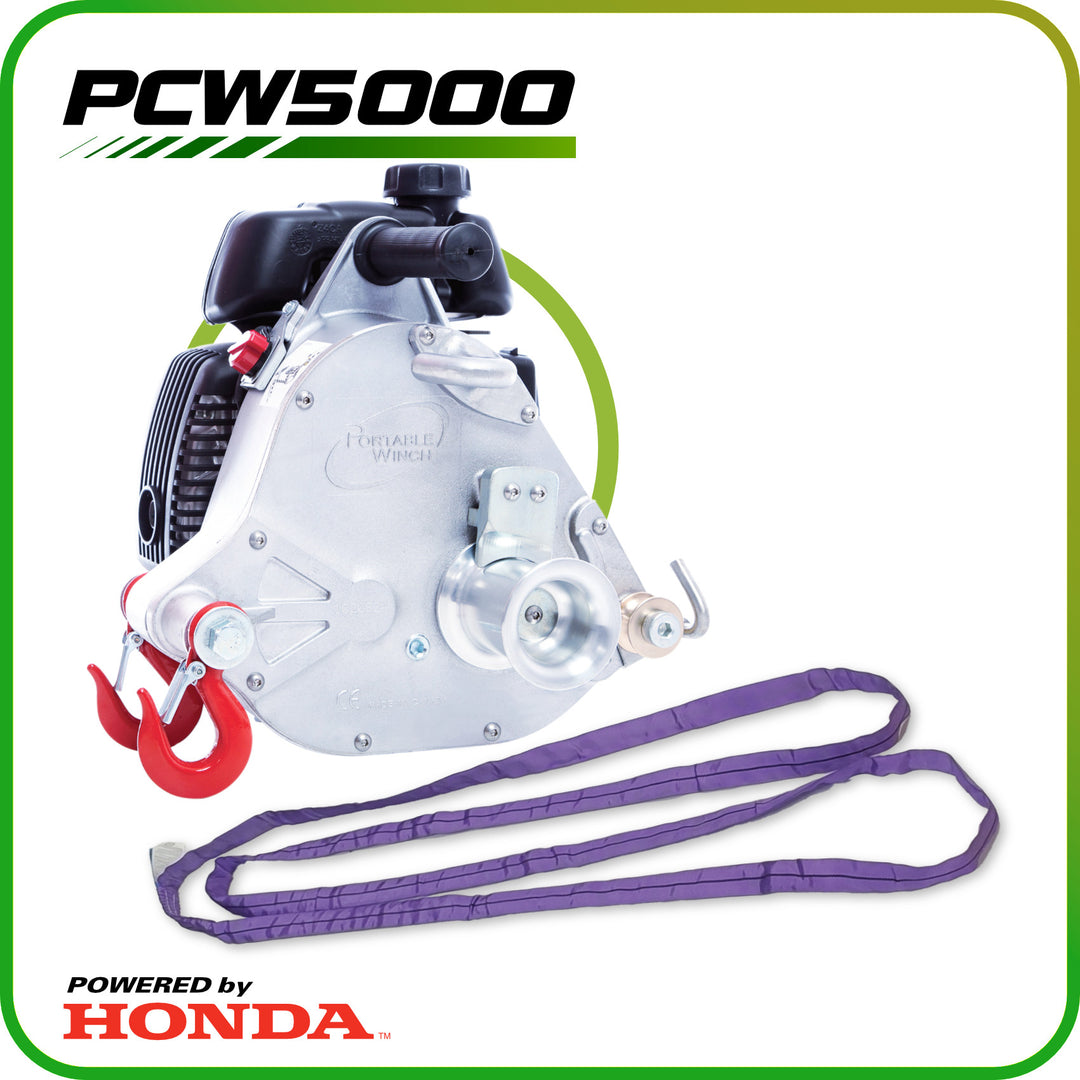

PCW5000

Regular price $1,879.00 CAD
/
Shipping calculated at checkout.

Only 95 items in stock!
find your dealer



DESCRIPTION

The original winch.

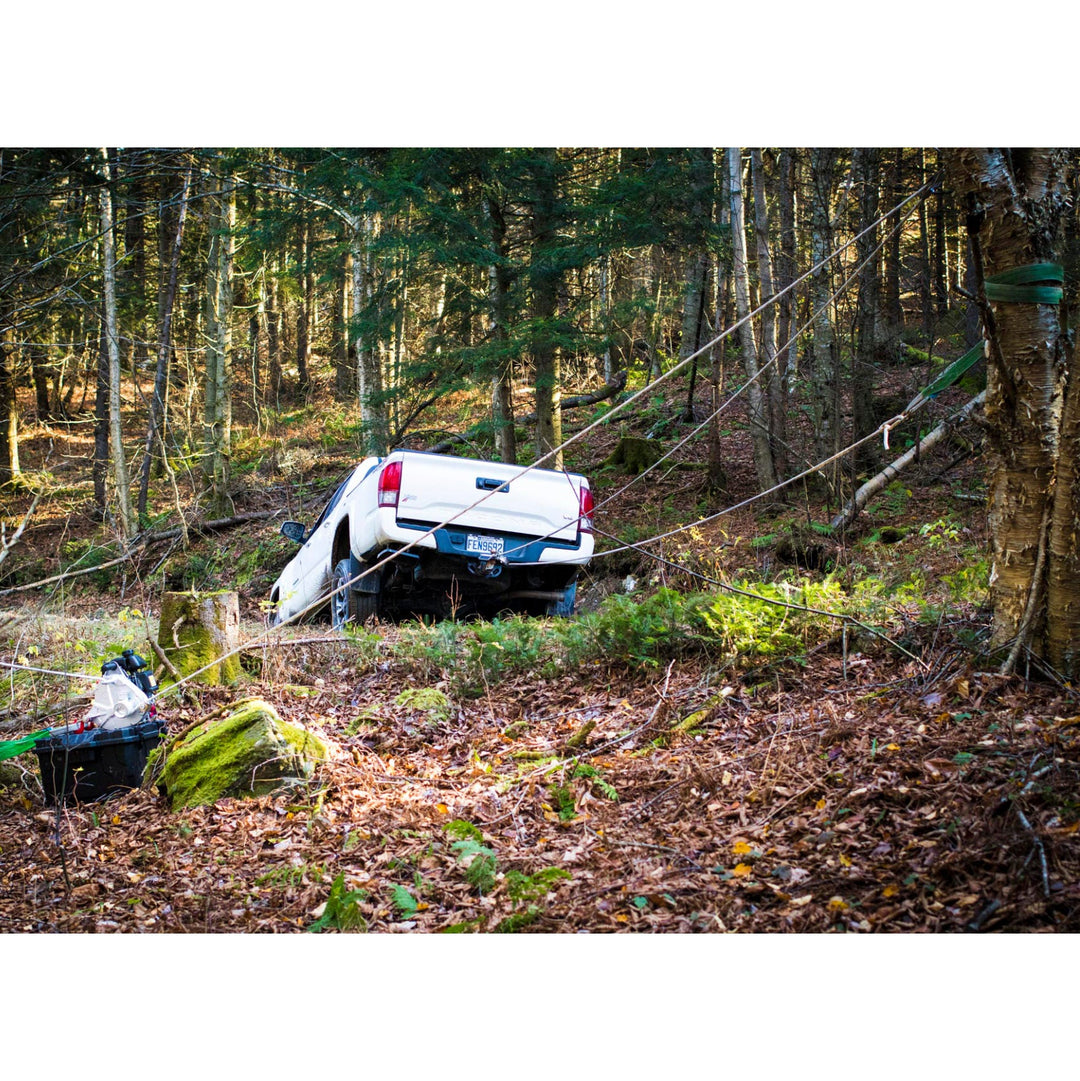

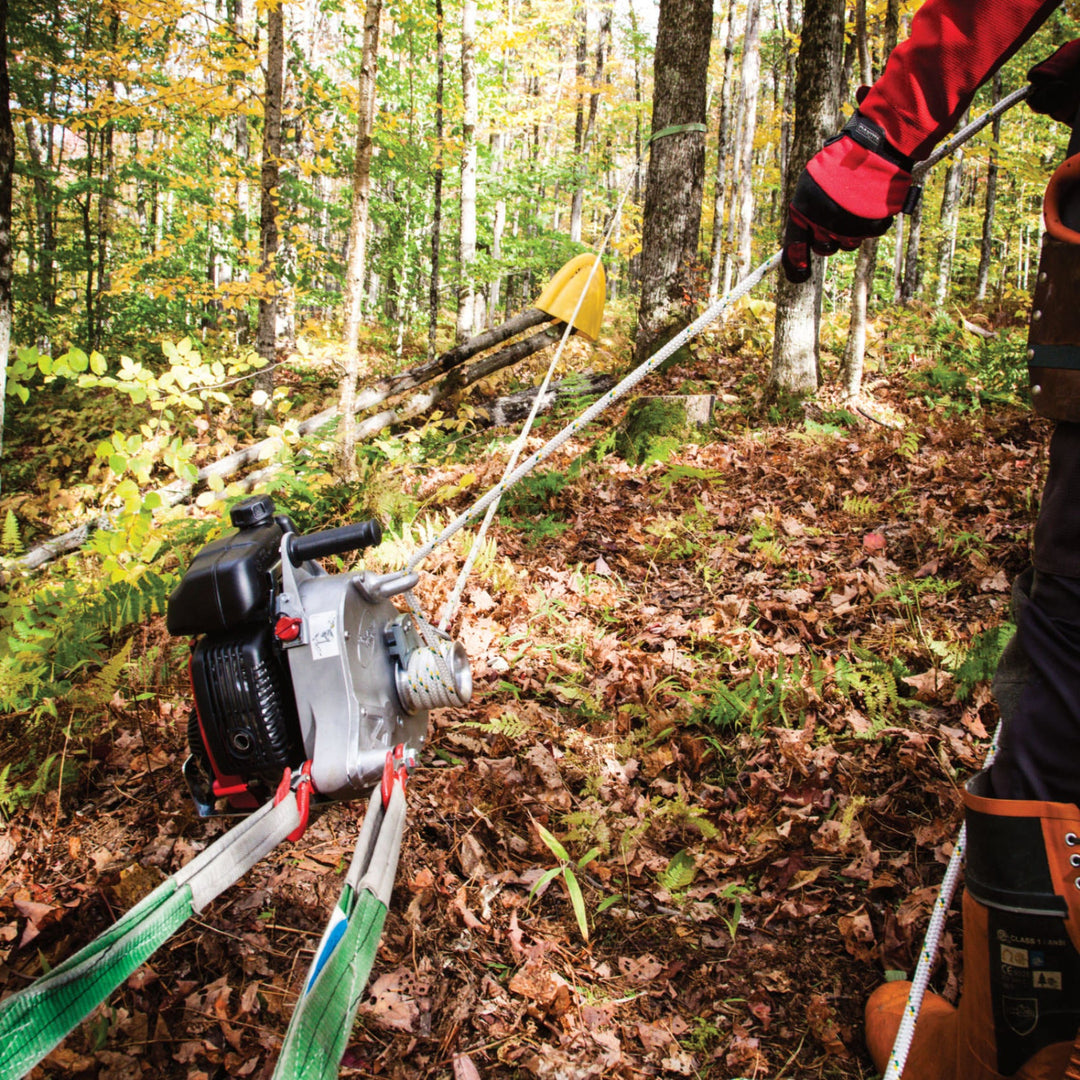

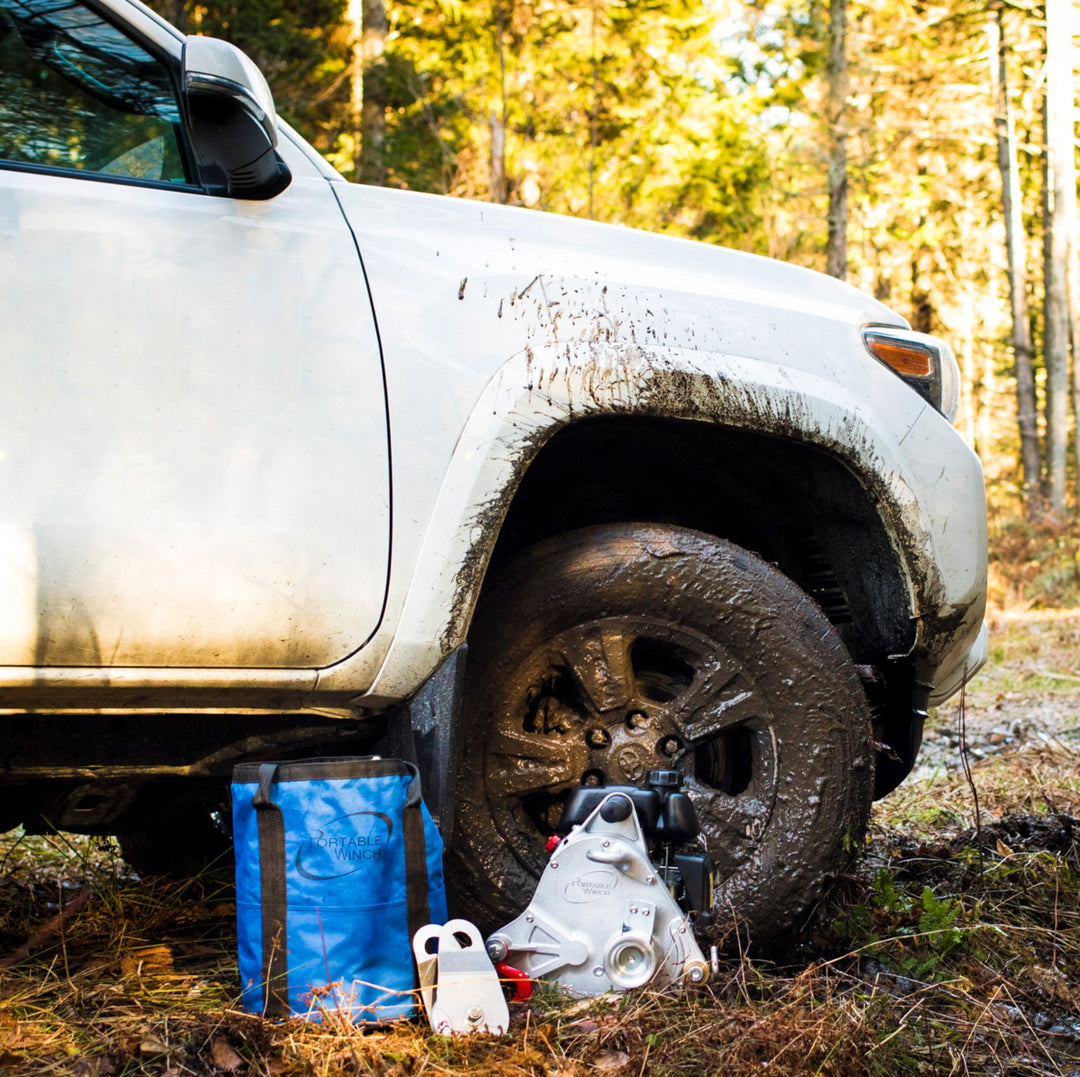

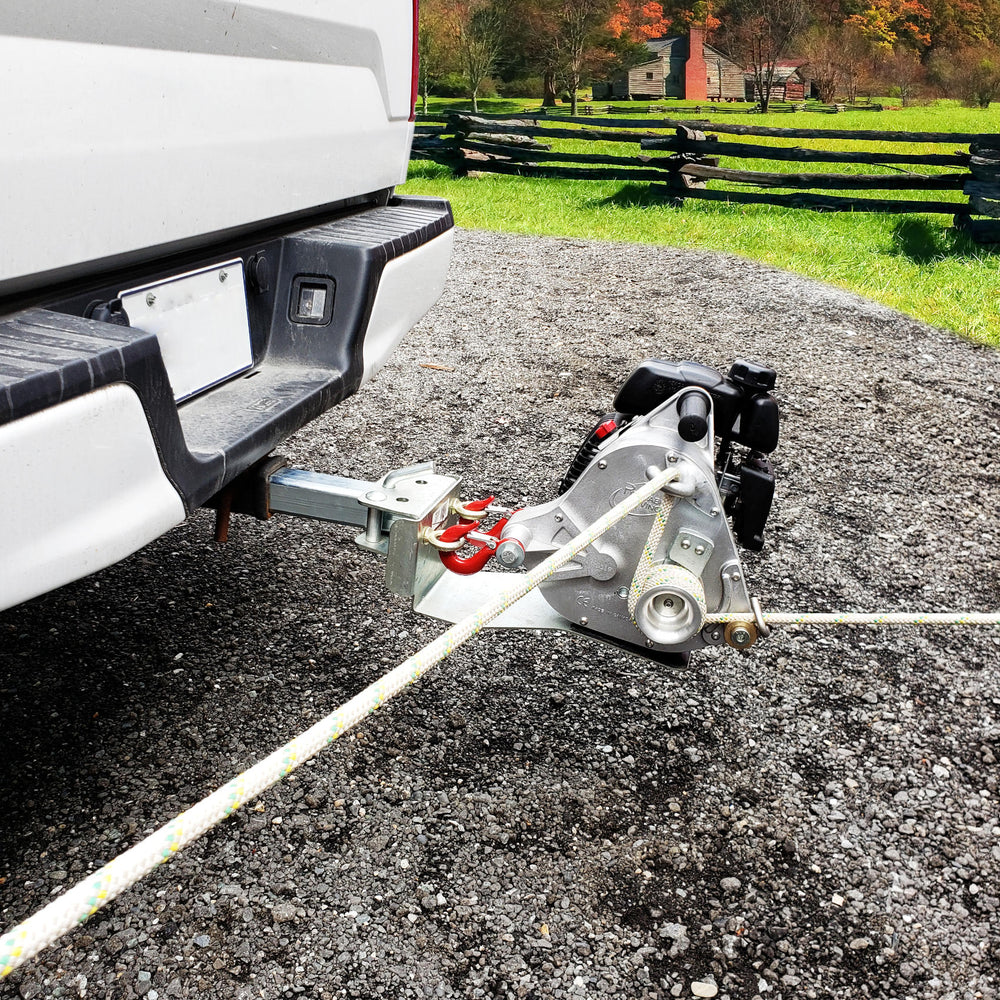

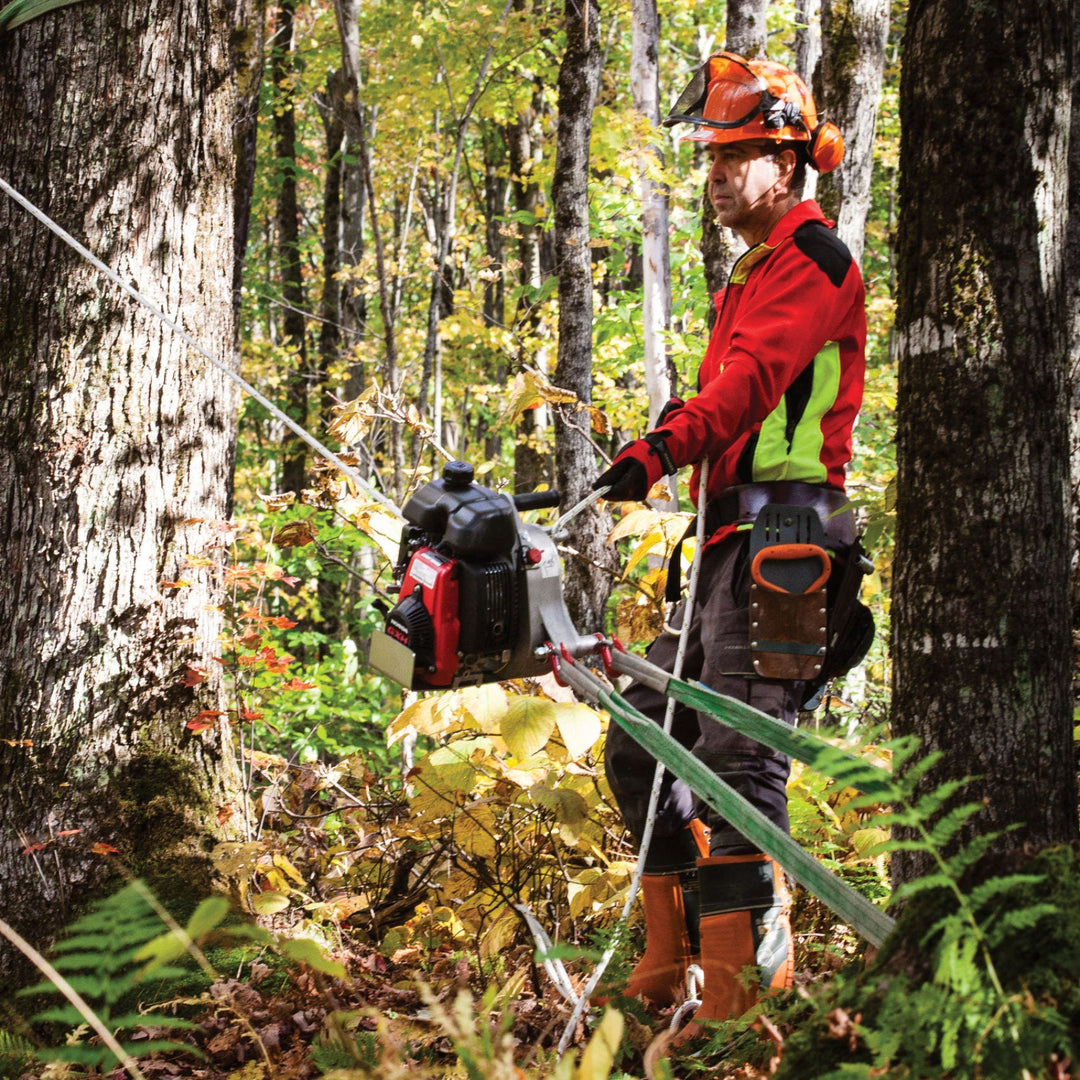

Whether it's for pulling trees out of the woods, getting a stuck vehicle out, or any other purpose, the inexhaustible PCW5000 will be there to help you.

Design

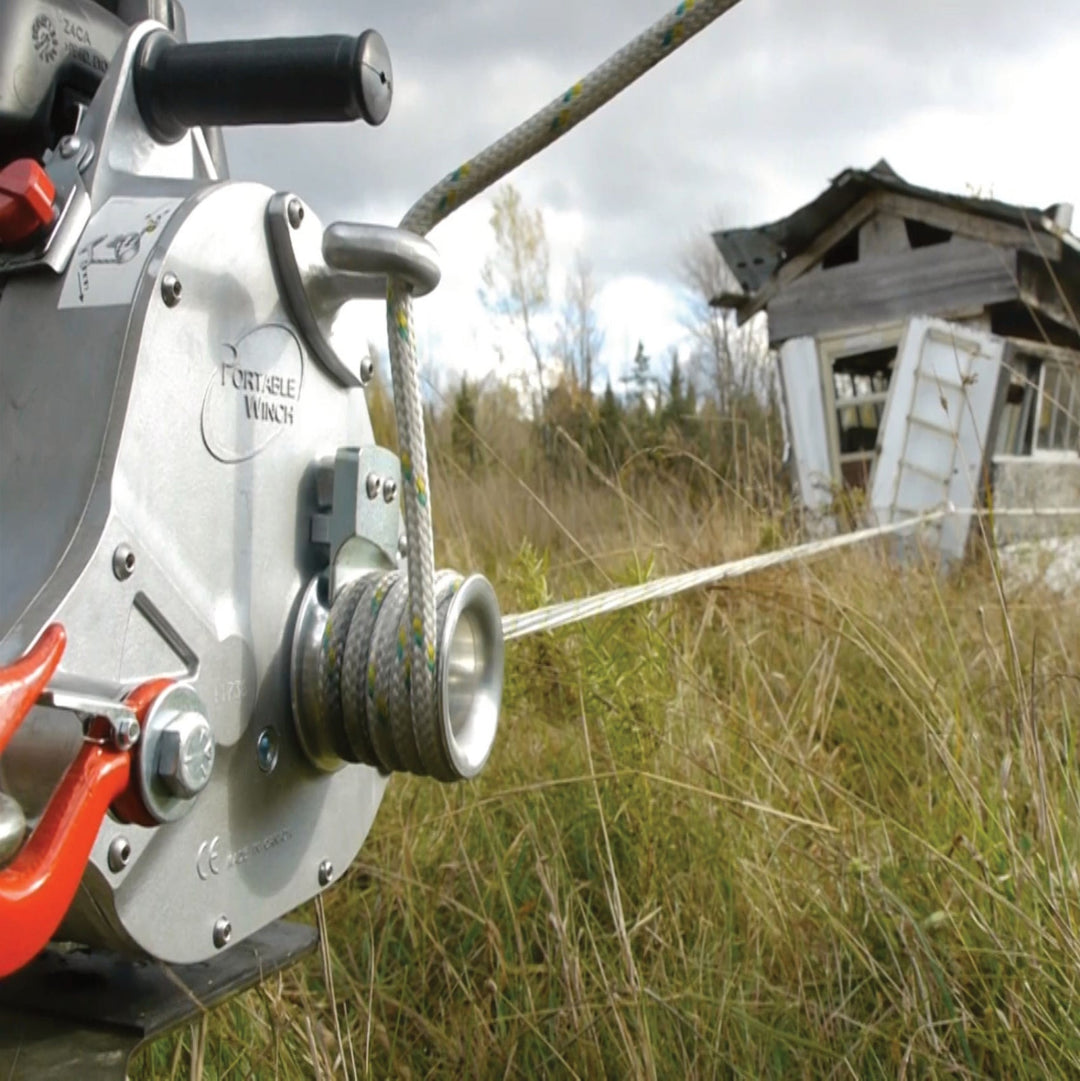

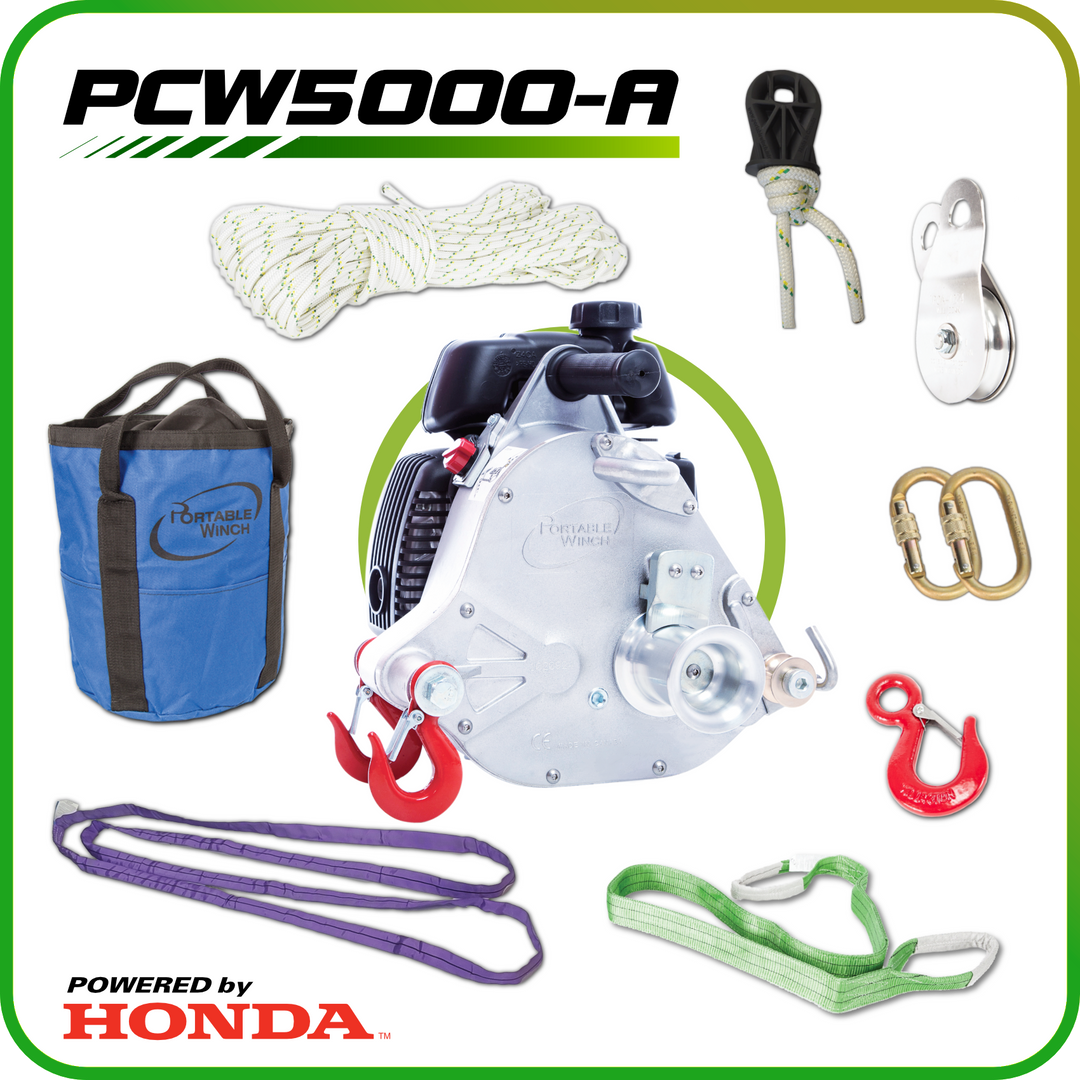

Its robust design makes it the Portable Winch benchmark for quality and durability: ingenious products, offering durable power without compromise, anywhere. The Honda GXH50 engine mounted on this winch is an industrial grade engine that will provide performance for several hundred hours. The capstan winch concept allows users to pull loads over an unlimited length of rope, without loss of power, in a simple, effective, and safe way. In addition, the PCW5000 offers two speed options thanks to its interchangeable capstan drums. You can choose the one that will best suit your task. The 57 mm diameter drum, standard on the winch, delivers all the power with a pulling speed of 12 meters per minute. For more speed, the optional 85 mm drum (PCA-1100) will give you 50% more speed, or 18 meters per minute. A wide range of complementary accessories has been specifically designed to meet your needs.

Performance
The PCW5000 develops a remarkable pulling force of 1,000 kg without mechanical advantage. By adding a pulley system, you can go up to five times (5x) the pulling force. That means, with two double pulleys, you could pull up to 5,000 kg!

PCW5000
Series Pro
Designed in 2003

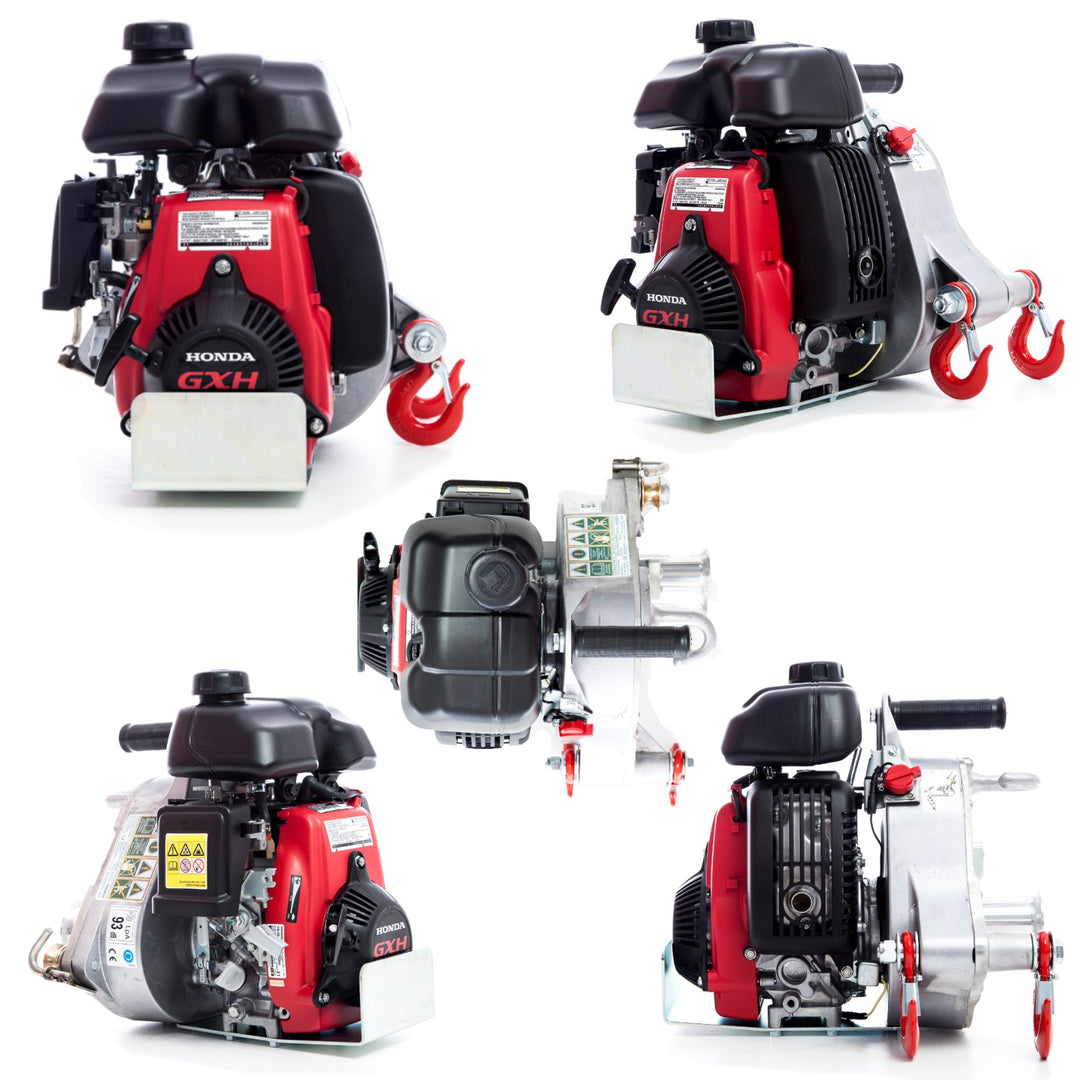

Motor/Engine Honda GXH50 4-stroke
Air-cooled
1.6 kW - 2.1 HP @ 7,000 tr/min
Powered by Unleaded gasoline, 86 octane or higher
Drive/Clutch
Direct drive (no clutch)
Rope Retention System No
Drum turns when motor/engine is idling Yes

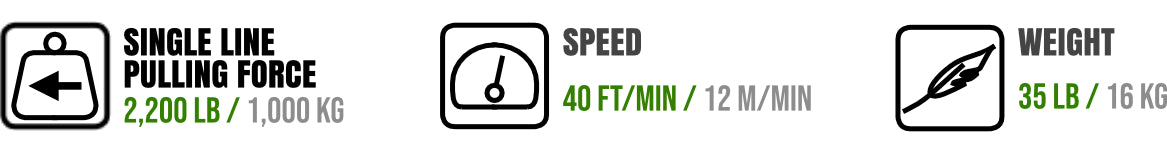

Pulling Capacity
   Standard drum (single line / double line) Ø 57 mm: 1,000 kg / 2,000 kg
   Optional drum (single line / double line) Ø 85 mm: 700 kg / 1,400 kg
Lifting Capacity
   Standard drum (single line / double line) Not designed for lifting - See INDUSTRIAL Series winches
   Optional drum (single line / double line) ---
Speed
     Standard drum Ø 57 mm: 12 m/min
     Optional drum Ø 85 mm: 18 m/min
Weight 16 kg
Dimensions (overall) 37.1 cm x 36.6 cm x 36.6 cm
Gearbox
Aluminium alloy. Heat treated 3-stage spur gears. Mounted on ball bearings. Oil bath lubrication.
 Gear ratio 110:1
 Brake Anti-reversing roller clutch bearing

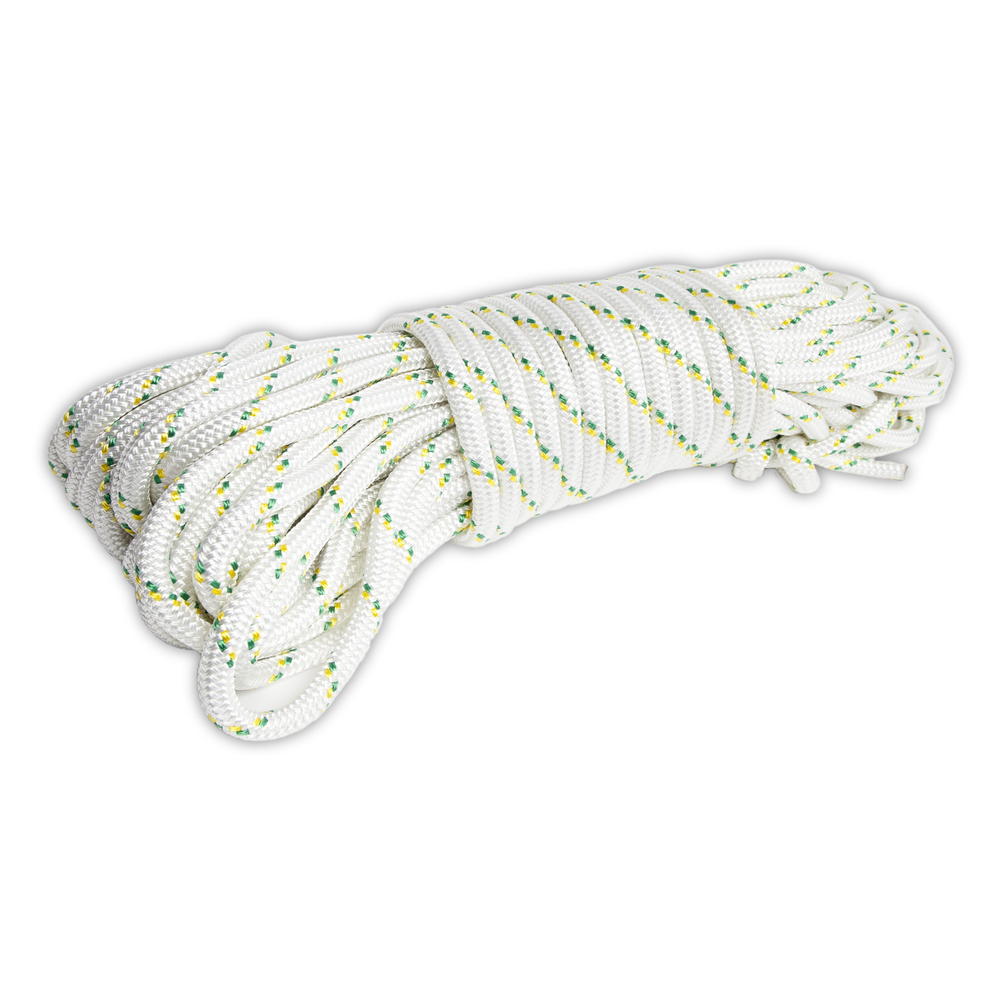

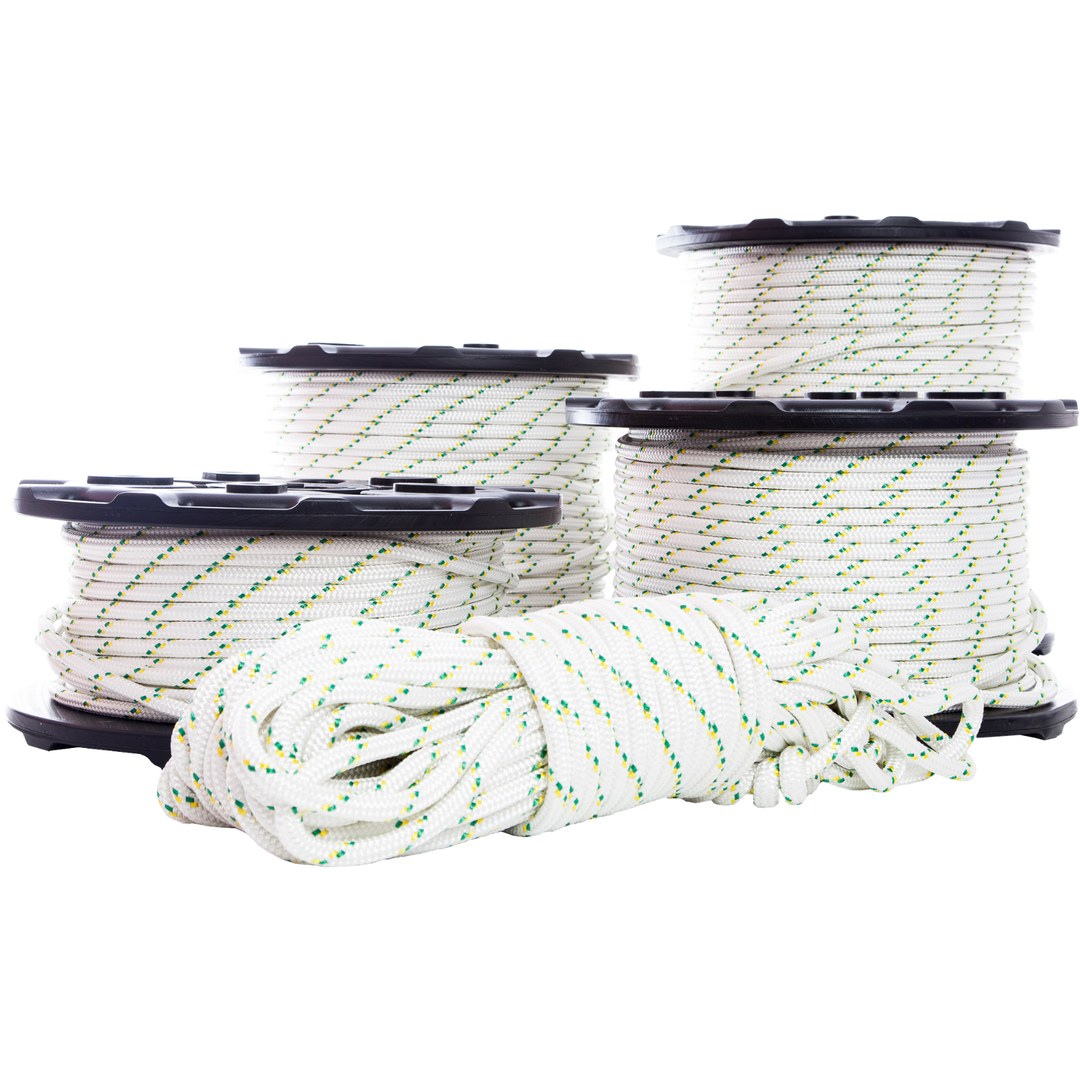

Rope (not included)
Low stretch double braided polyester
 Length Unlimited
    Minimum Breaking Strength (MBS)
2,200 kg
 Minimum diameter Ø 10 mm
 Maximum diameter Ø 13 mm
 Recommended diameter Ø 12 mm
Included
Polyester sling - 60 mm x 2 m
Warranty Once purchased, register your winch online and get 1 additional year of warranty for FREE!
 Private use 5 years
 Commercial use 1 year
 Motor/Engine Honda International Warranty
Certification(s) CE
User Guide Download user guide
