DESCRIPTION

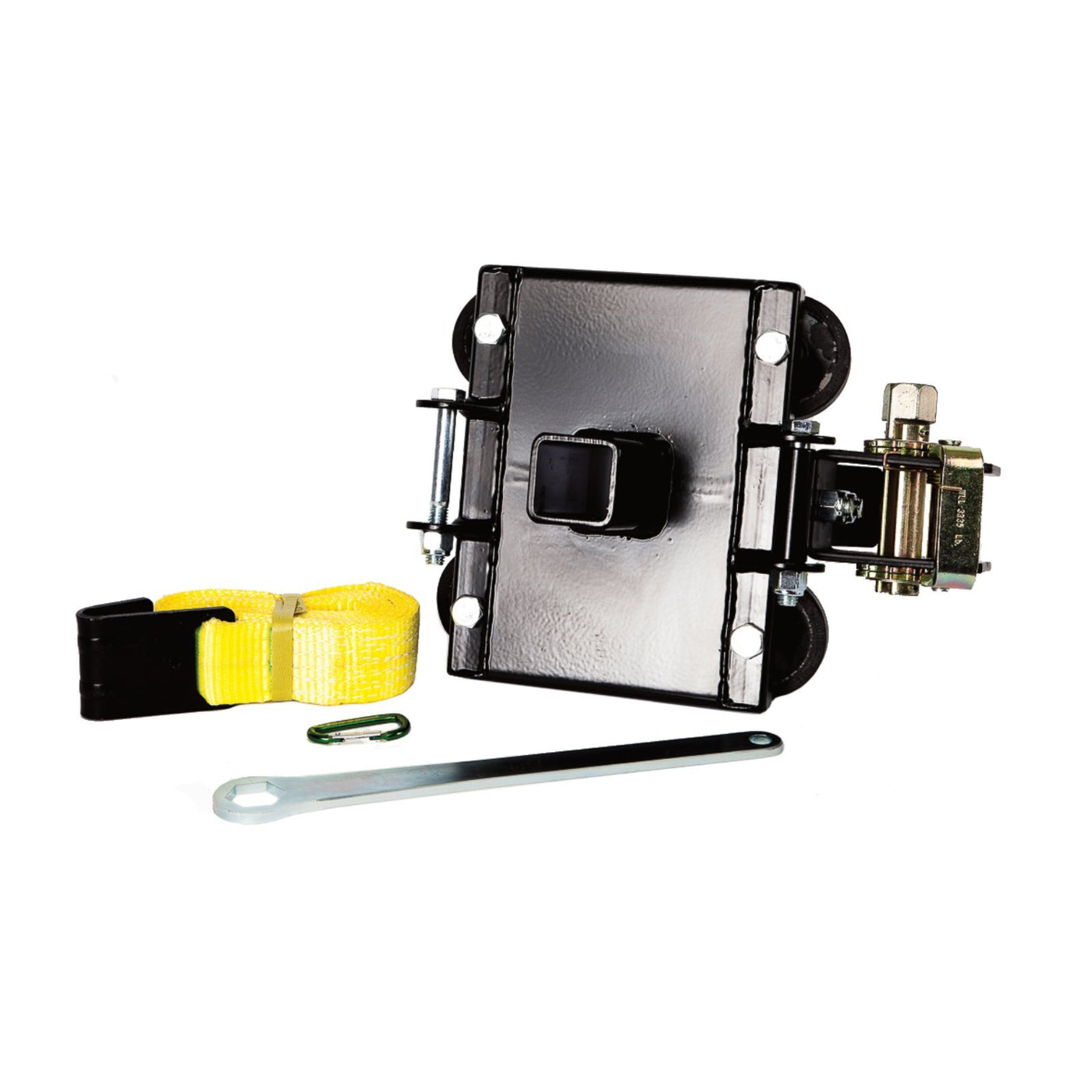

This anchoring system makes it possible to securely mount the winch to a tree or pole, allowing you to work at a more comfortable height and thus facilitate prolonged use from a fixed point. It is the basis of different combinations of accessories (see figures above). It has four rubber pads that prevent it from slipping on the pole and protect the bark of trees.
Included is a 3-metre belt and a ratchet system with key to securely anchor it.
For all winches. Find the manual here.
SPECIFICATIONS
Will fit trees or poles from 30 to 91 cm in diameter.Note: It can't be used alone; it must be combined with other accessories. Different combinations of accessories can be done with the PCA-1263 depending on the application and the environment (see figures above).

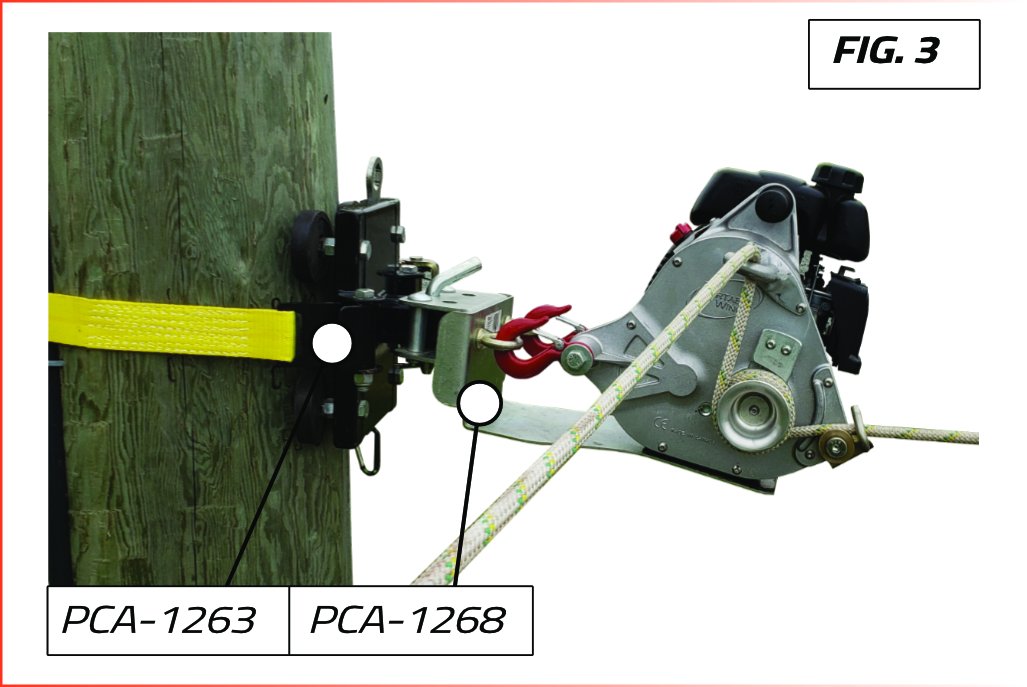

For instance, when paired with certain accessories, it will permit horizontal pulling. In such case, the winch will face the load and the rope will be in a direct line towards the winch.
See Fig. 3, 4, 5
Whereas when combined with other accessories it will be used for vertical pulling. In these cases, the winch will face the anchor point and the rope will come from the top to the winch.
See Fig. 6, 7
Material: Steel with high resistance paint
Weight: 7.2 kg
Dimensions: 37 cm x 26 cm x 22 cm
|
VIDEO CONTENT Since the video above is 13-minute long, we thought we would put the markers below to allow you to move directly to your product(s) of interest. You will be able to advance the video at the time of your choice. |
|
|
PRODUCTS |
STARTS AT |
|
Anchoring systems for trees and poles |
1 min 10 sec |
|
PCA-1260 - Polyester sling |
1 min 15 sec |
|
PCA-1263 - Tree-mount winch anchoring system with rubber pads |
1 min 37 sec |
|
PCA-1268 - Winch support plate |
3 min 31 sec |
|
PCA-1264 (PCA-2264) - Vertical pull winch supports. Products modified since. |
4 min 26 sec |
|
PCA-1269 - Tree-mount winch anchoring system |
6 min 50 sec |
|
Anchoring systems for vehicles |
8 min |
|
PCA-1267/PCA-1501 - Hitch square tubing |
8 min 13 sec |
|
PCA-1266 - Heck Pack anchoring system with adaptor for 50 mm tow ball |
8 min 30 sec |
|
PCA-1268 - Winch support plate |
8 min 45 sec |
|
PCA-1264 (PCA-2264) - Vertical pull winch supports. Products modified since. |
9 min 35 sec |
|
PCA-1261 - Hitch plate for towing balls |
11 min 34 sec |
