PCA-1272

Self-Locking Pulleys

Regular price$345.00 CAD
/
Shipping calculated at checkout.

Size
FIND YOUR DEALER

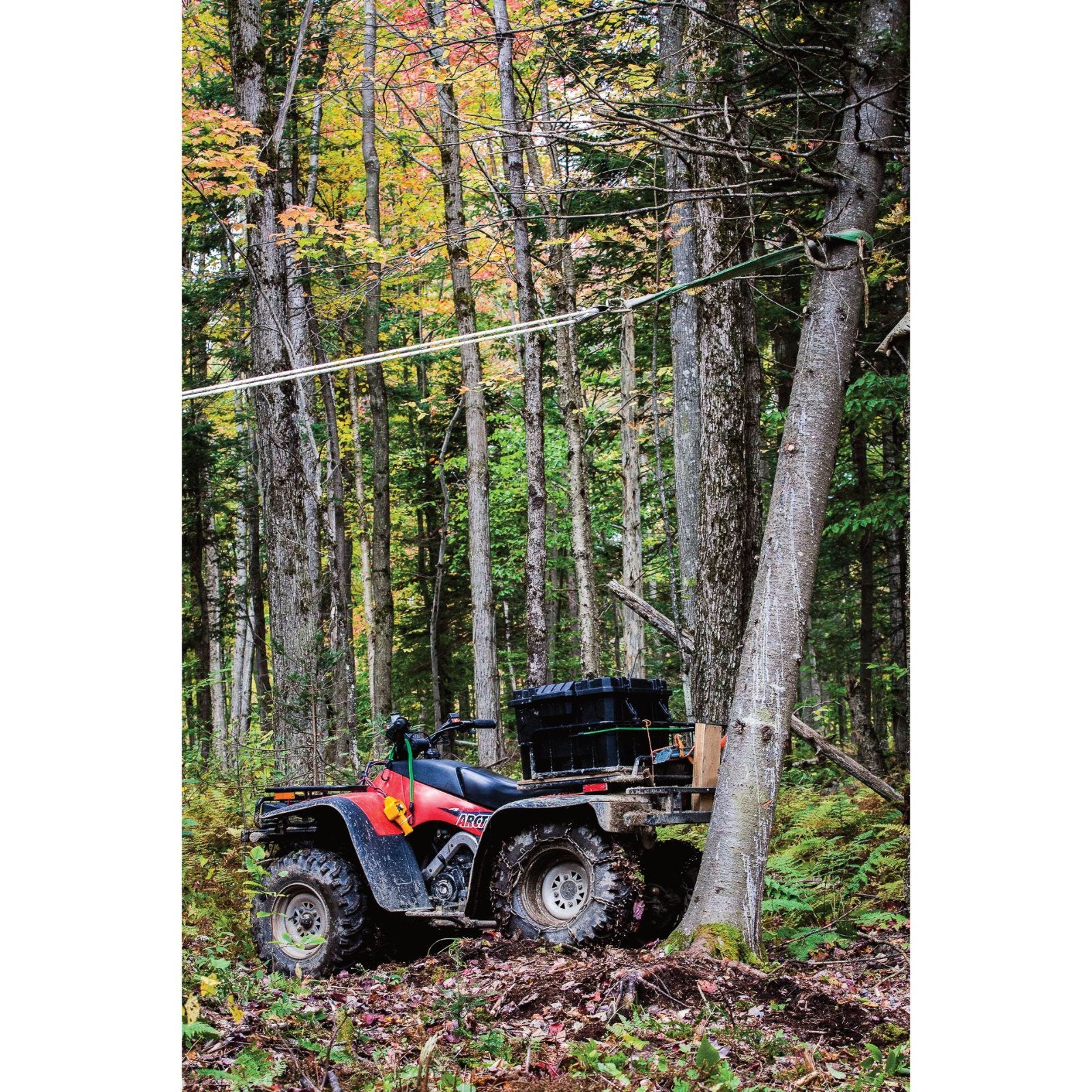

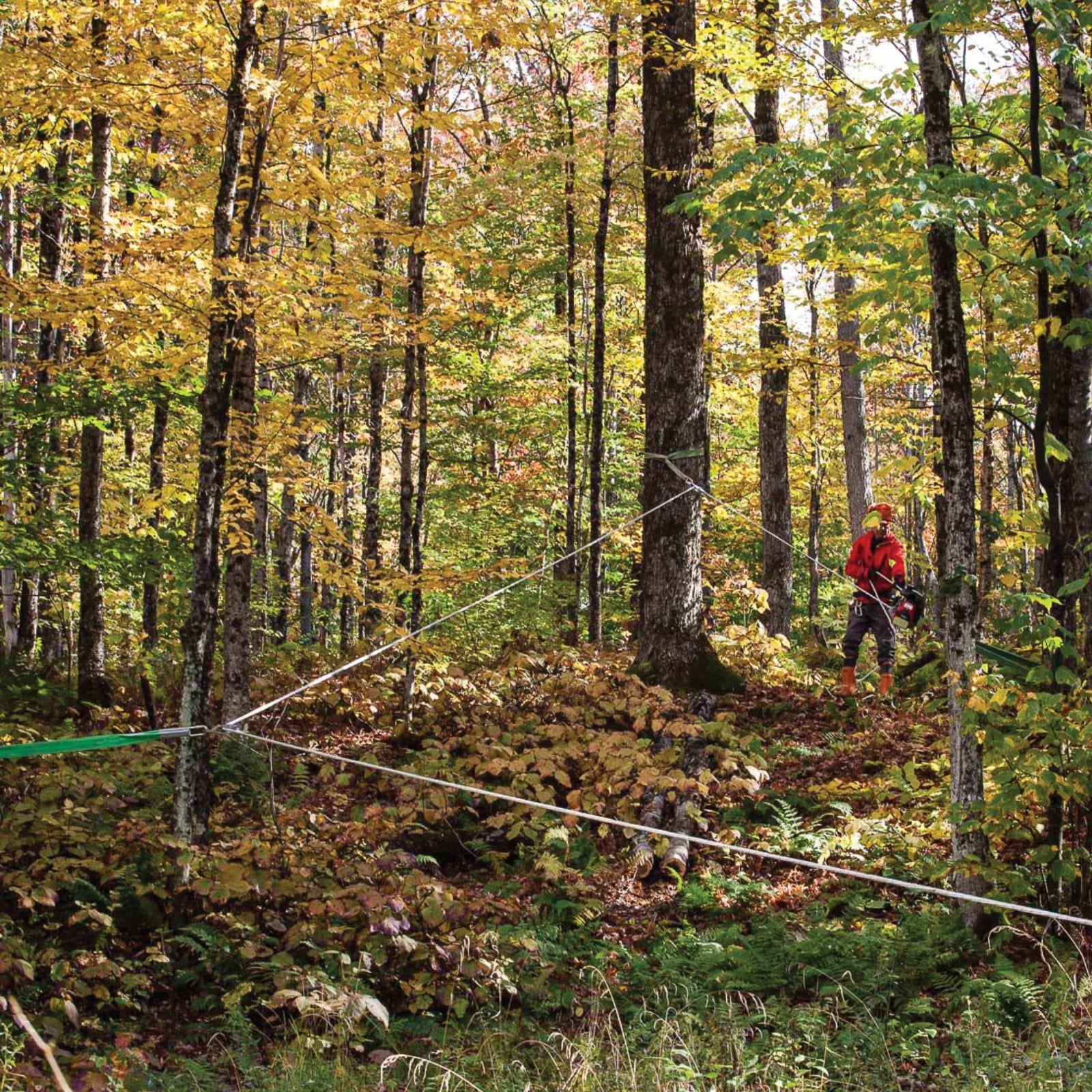

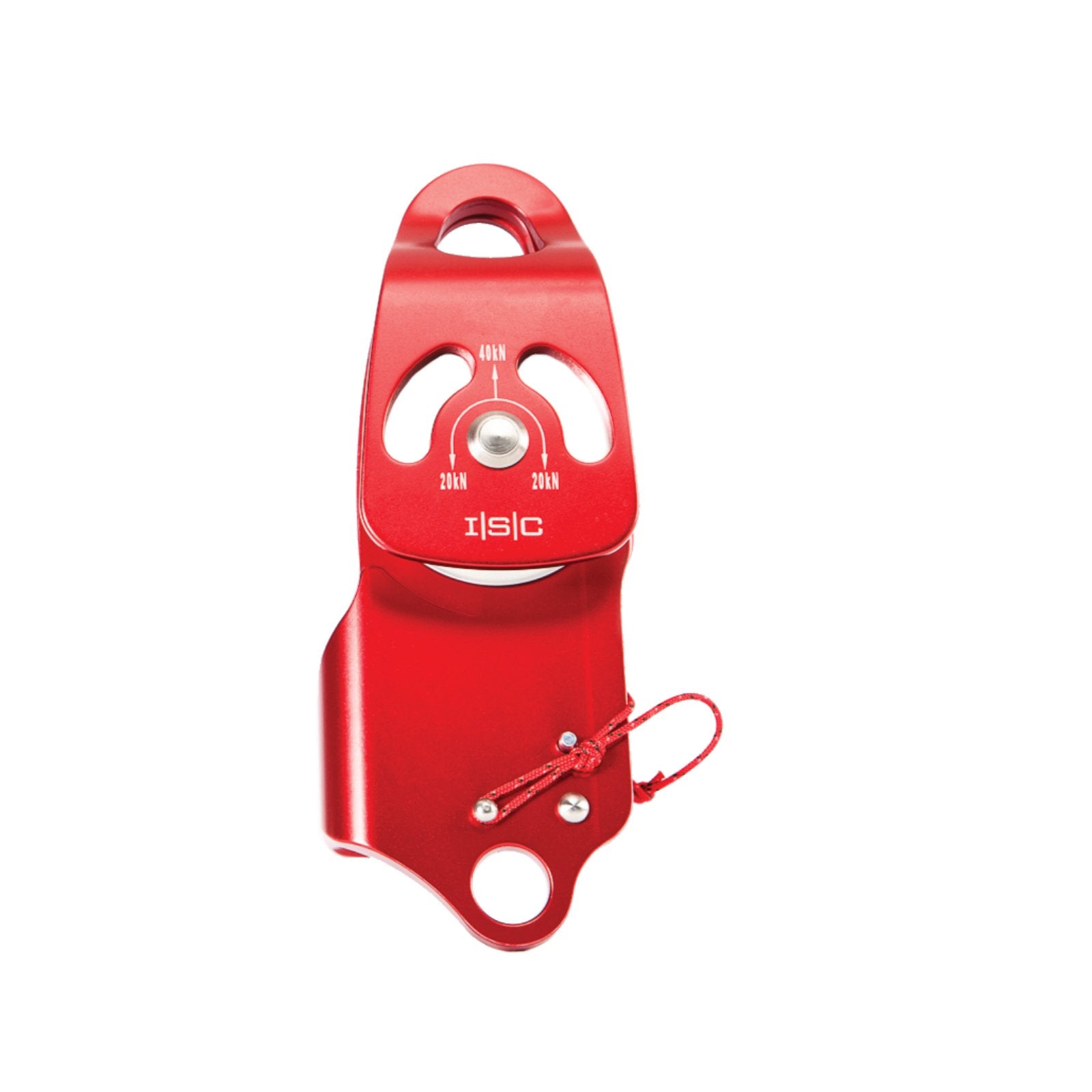

Here are our two models of self-locking pulleys available for users looking for holding a load in position. They are popular in lifting operations as well as being very useful in forestry, hunting or for industrial applications.

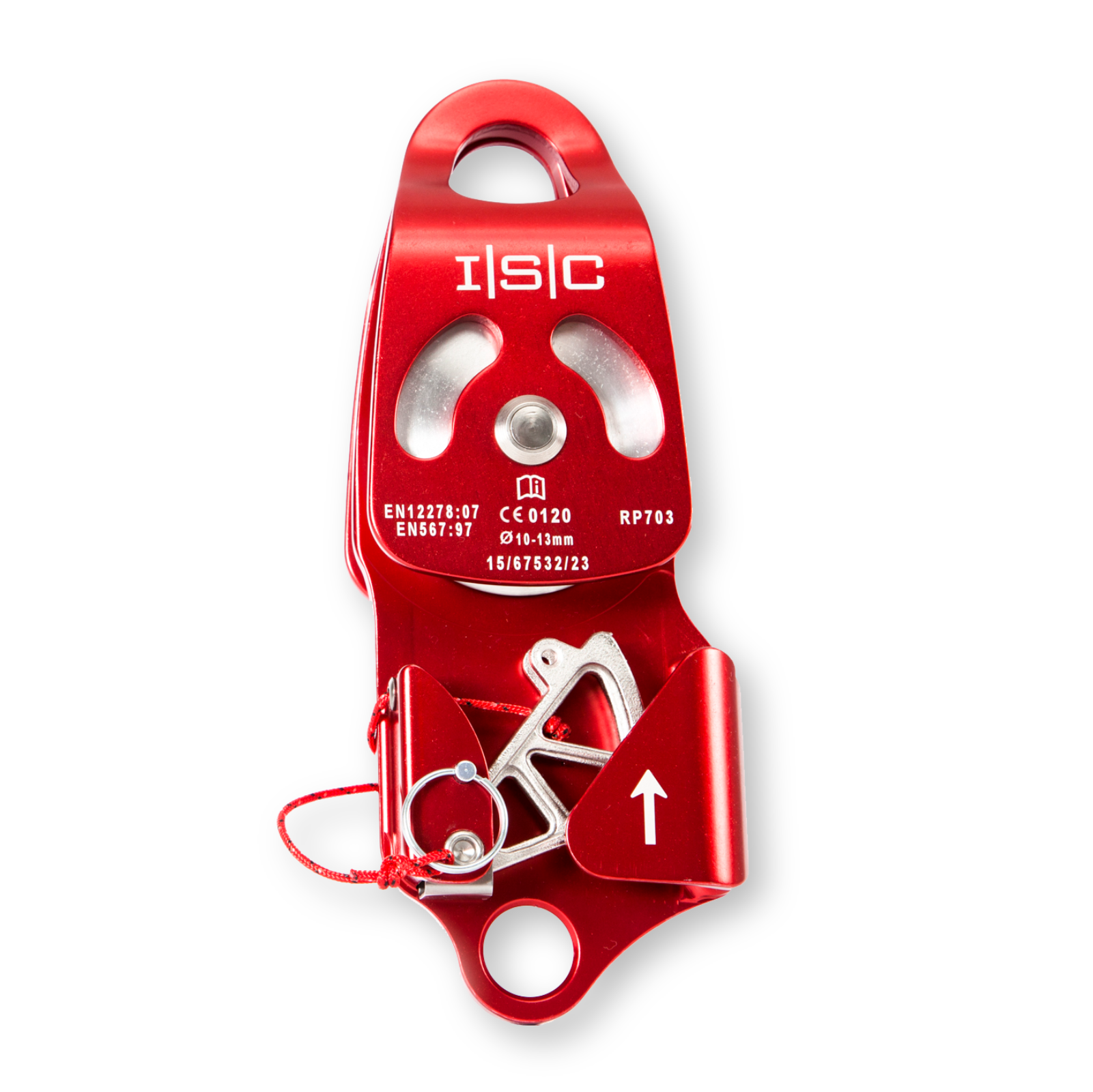

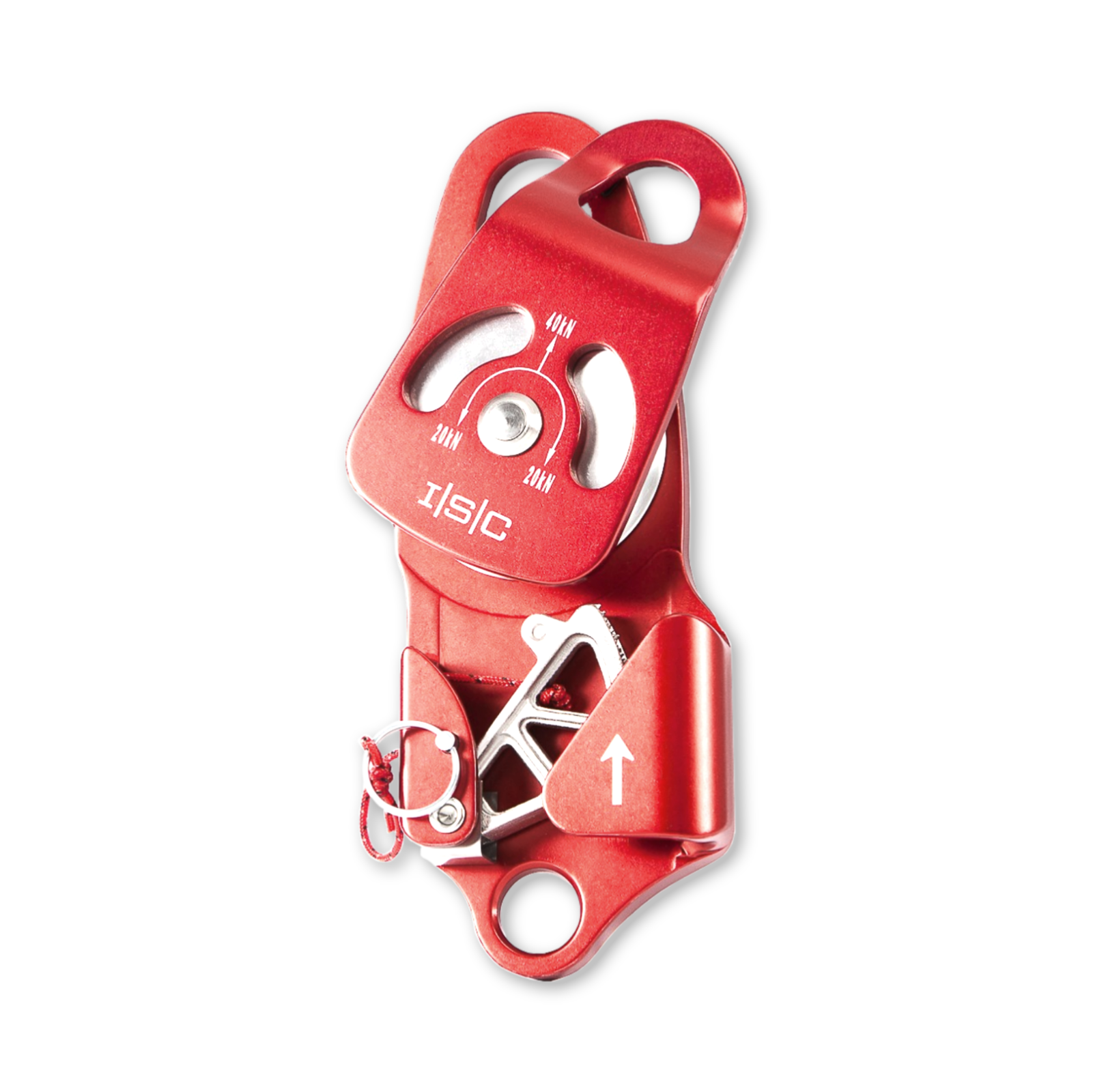

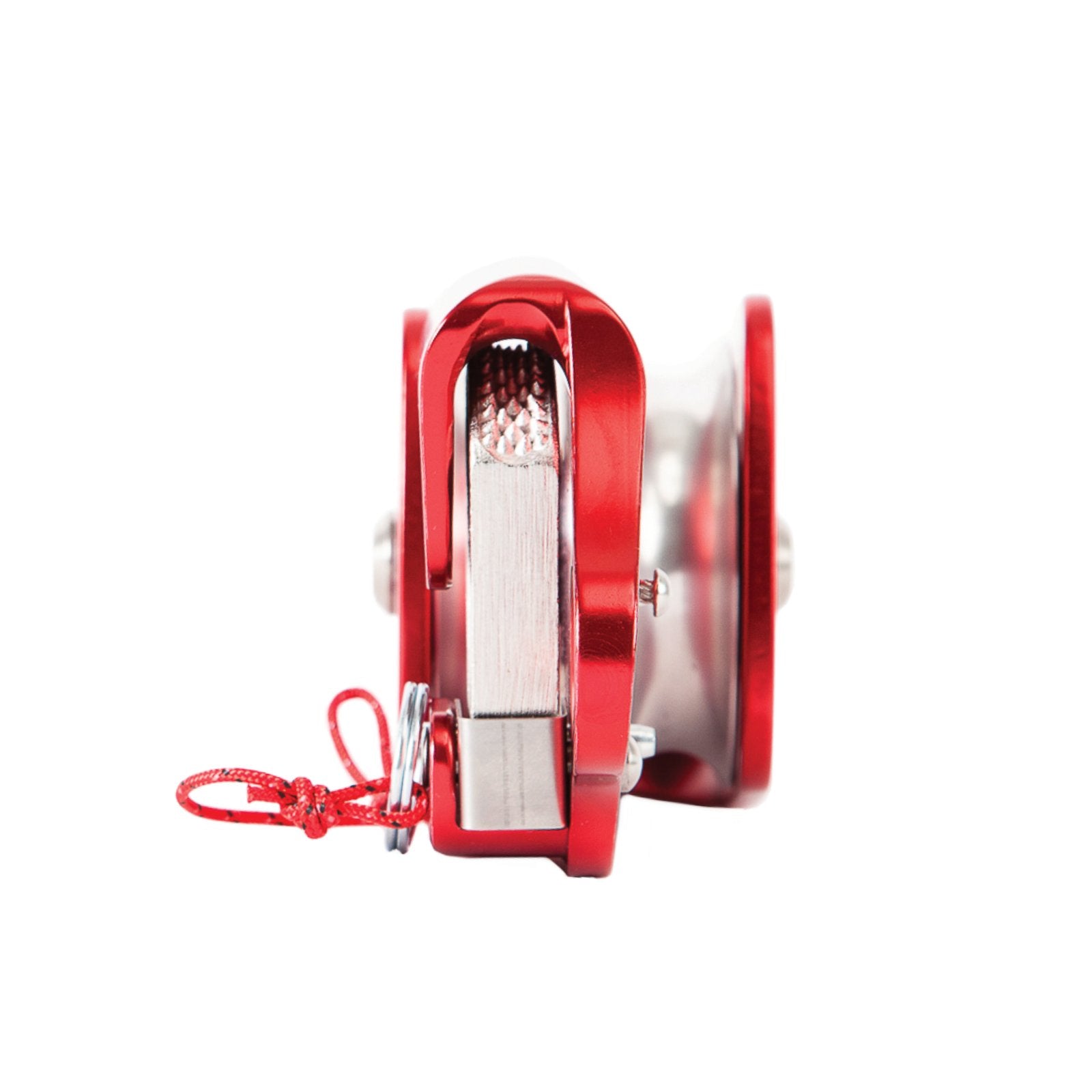

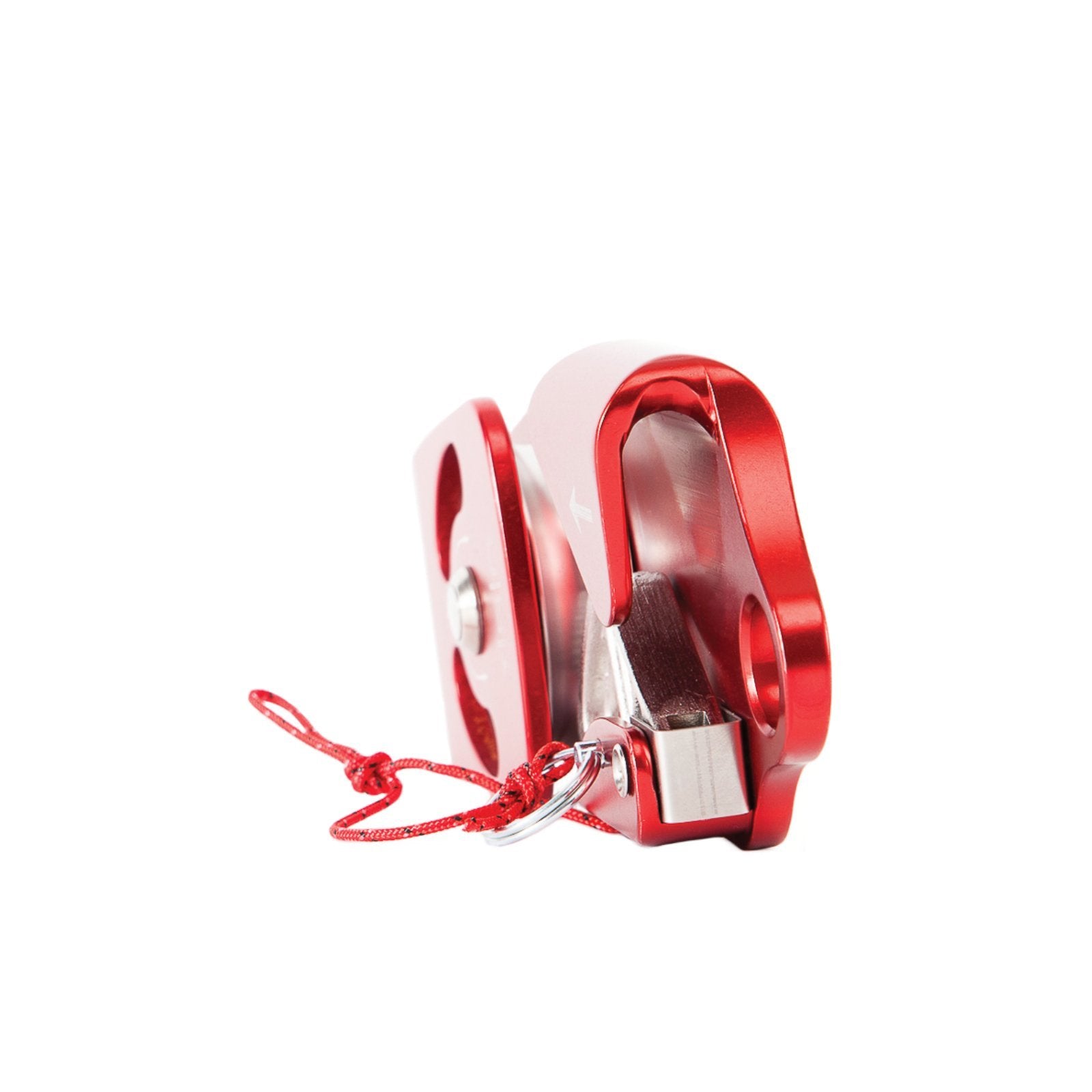

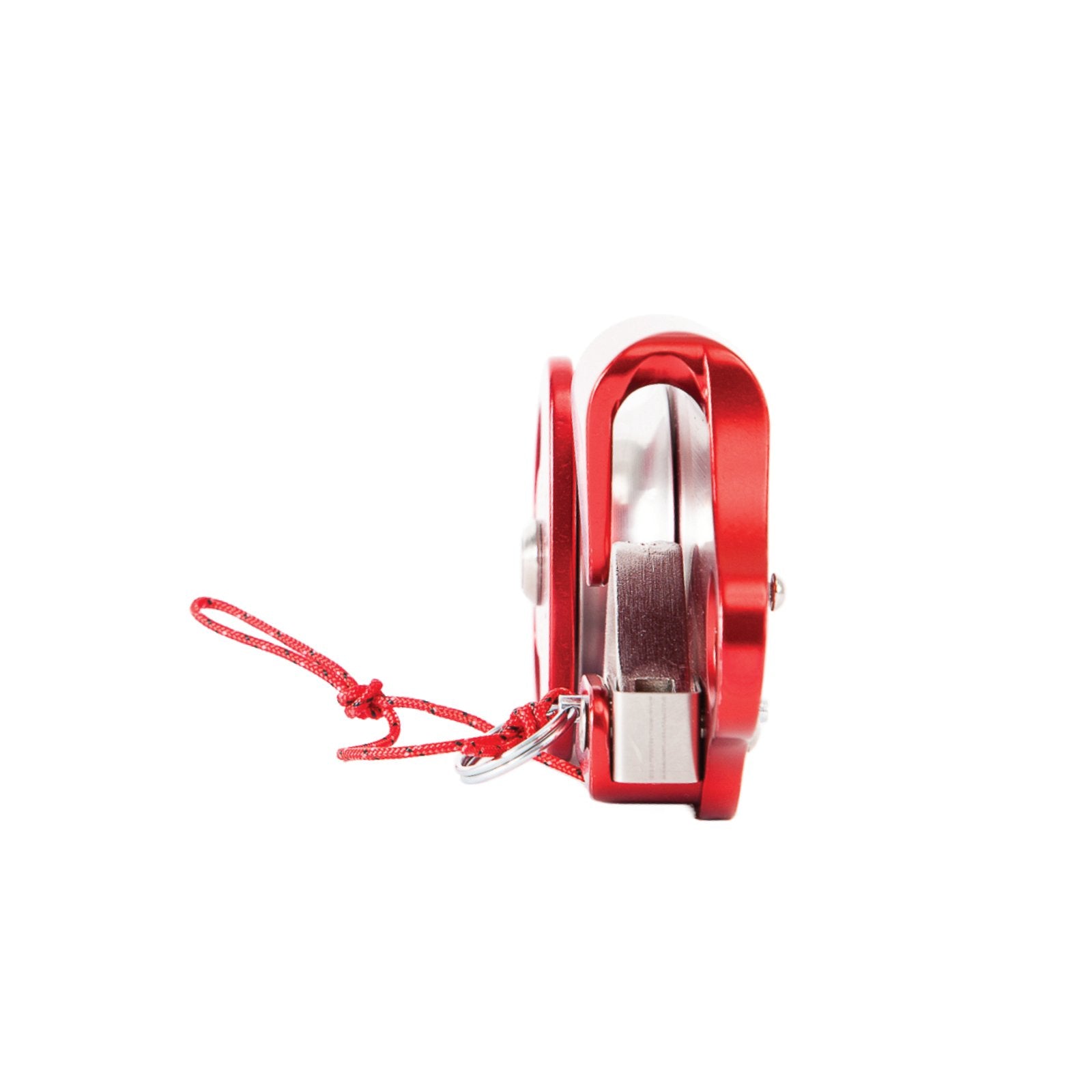

These ISC brand specialized pulleys are made of aluminium and are therefore lighter, although their main feature is their cam brake system that allows the rope to pass freely in one direction and is blocked in the other. The cam is spring-loaded and can be disengaged by pulling a cord. It can also be locked in open position by using the pin provided. The pulley can then be used as a standard one, allowing the rope to go freely in both directions.

Made with aluminium swing side plates and sheaves, they are mounted on a stainless steel shaft and a self-lubricating bearing which will ensure a flawless operation, all without maintenance.

Learn more about our pulleys on our Pulleys Play List on YouTube.

PCA-1271* PCA-1272*
700 g 900 g
Single pulley Double pulley
Ø rope up to 13 mm
All aluminium
Ø sheave 62 mm
MBS 40 kN (4,079 kg)
*CE certified

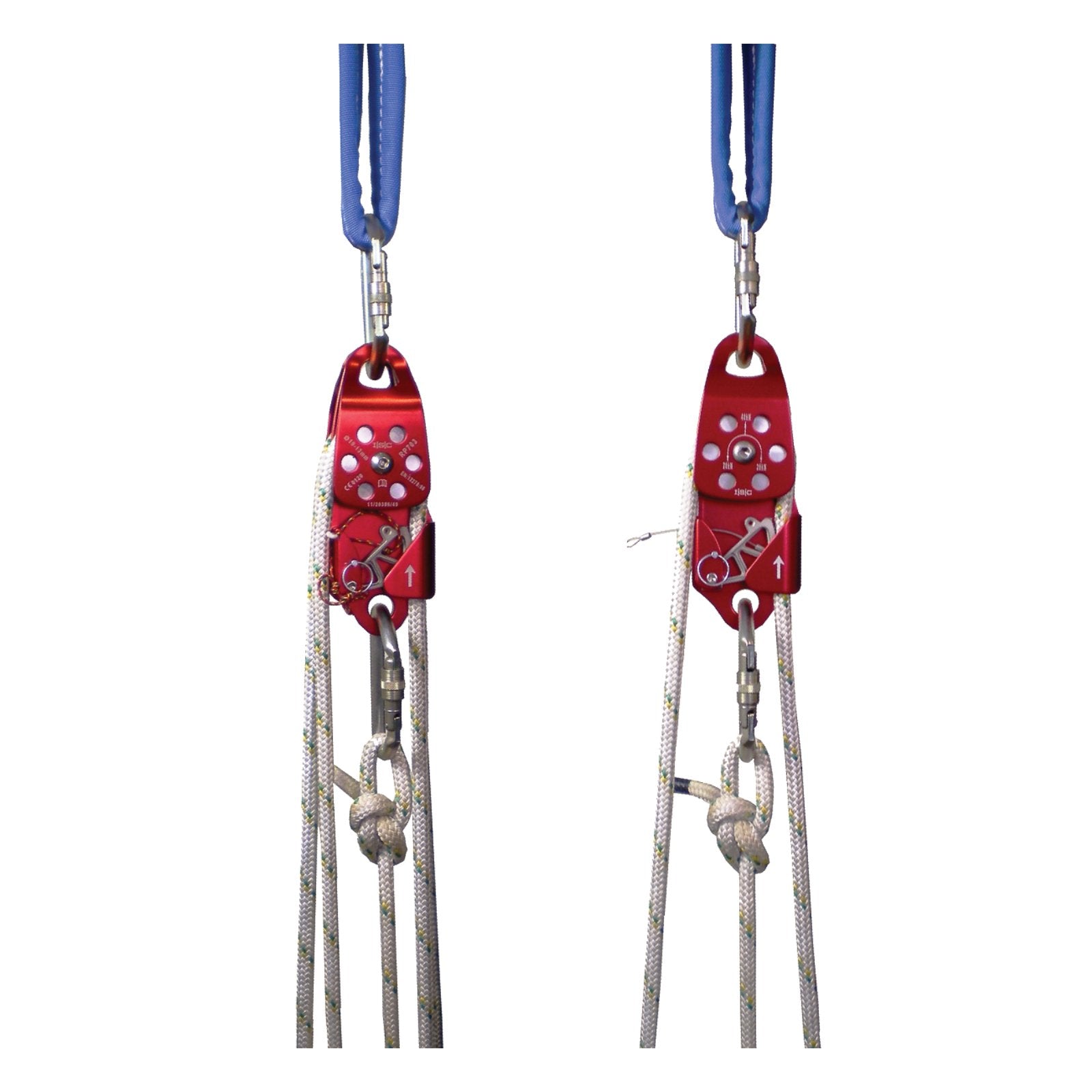

Mechanical advantage
